Description

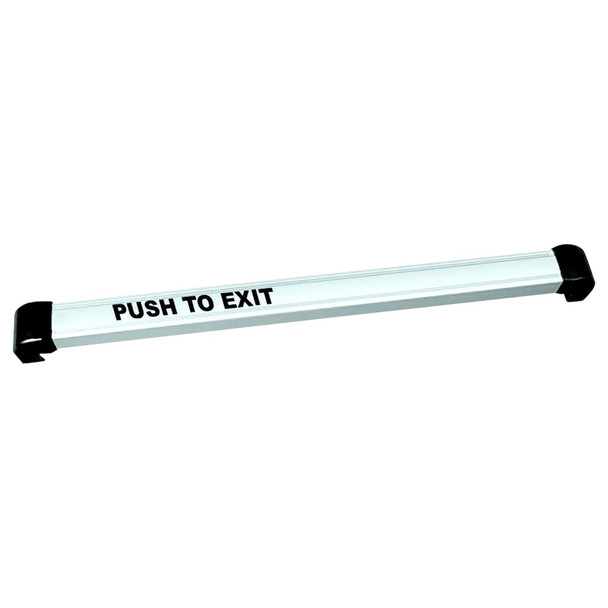

The Securitron TSB-CL-48 is a touch-triggered electronic exit device for magnetically locked doors. A light touch on the bar, even through gloves or clothing, activates a sensor that releases the lock instantly. Ideal for controlled access facilities requiring ADA-compliant egress, it meets code criteria for requiring no special knowledge to operate and installs on metal, aluminum, or wood frame doors up to 48 inches wide.
The TSB-CL-48 is field-cuttable for non-standard openings and works with doors up to 2-1/4 inches thick using the included through-bolt kit. A redundant push button on the rear provides backup release. Compatible with 12 VDC or 24 VDC systems, it ships with 16 feet of cable and a trailing edge timer. Contact our expert team at sales@edlocks.com or 1-877-207-6067 for integration support and authorized dealer pricing.
Specifications
- Brand: Securitron
- Model: TSB-CL-48
- Maximum Width: 48 inches (field-cuttable)
- Maximum Door Thickness: 2-1/4 inches
- Voltage: Dual 12 VDC / 24 VDC automatic
- Relay Rating: DPST 2A
- Current Draw: 40 mA at rest; 25 mA releasing
- Cable: 16 feet, 22 AWG, 6 conductor
- Installation: Indoor use only
- Features: Touch-sensor activation, redundant push button, trailing edge timer, armored door cord included
