Description

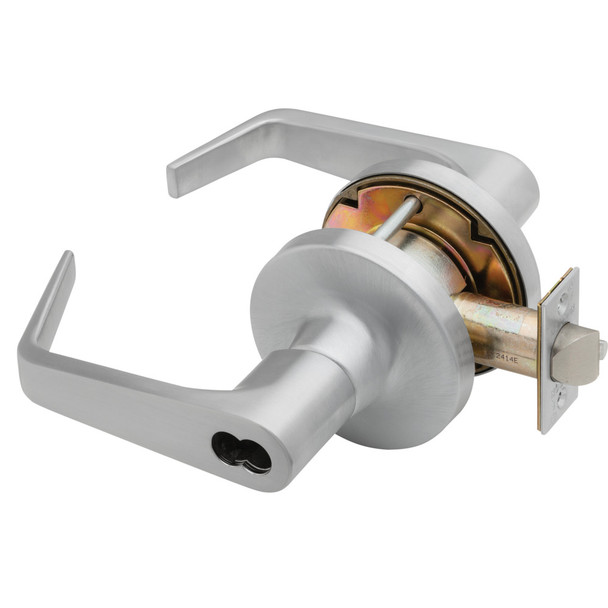

The Falcon T381BD is an extra heavy-duty Grade 1 cylindrical lock built for high-traffic institutional doors and demanding environments. Engineered with compression springs that exceed ANSI/BHMA Grade 1 testing, this lock delivers reliable security and durability for schools, offices, hospitals, and multi-tenant buildings where abuse-resistant hardware is essential.
Standard for 1-3/4 to 2-1/8 inch doors with 2-3/4 inch backset; thin door and alternate backset options available. The removable cylinder accepts industry-standard keyways and enables fast re-keying without door removal. As an authorized Falcon dealer, E.D. Locks provides expert configuration support and genuine parts. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for backset, handing, or keying questions.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4 to 2-1/8 inch standard
- Backset: 2-3/4 inch standard (2-3/8 inch available)
- Bolt Projection: 9/16 inch
- Cylinder: 6-pin drilled, pinned in 5 (6 or 7-pin available)
- Keyway: G standard (A available on interchangeable core)
- Handing: Non-handed
- Construction: Brass or cold-formed steel, zinc-plated, stainless steel springs
- Latch Faceplate: 2-1/4 x 1-1/8 inch with square corners
- Strike: 4-7/8 x 1-1/4 inch ANSI with curved lip
- Keys Included: Two nickel silver keys
