Description

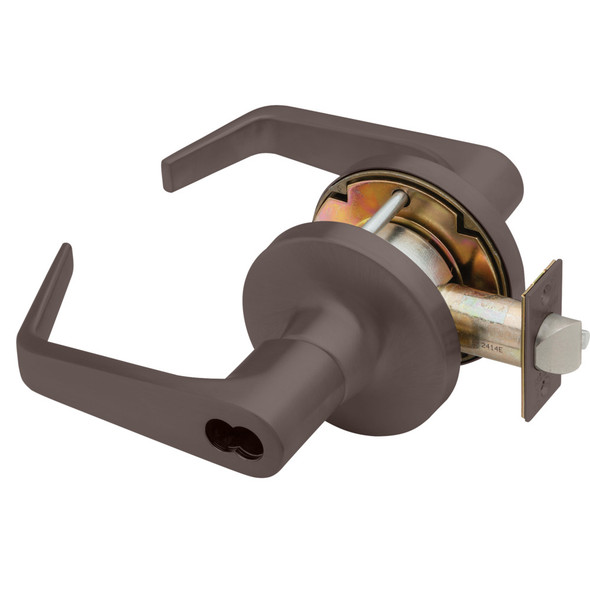

The Falcon T571BD is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic institutional applications and heavy-abuse environments. It exceeds ANSI/BHMA Grade 1 testing requirements with a compression spring design, brass and stainless steel construction, and removable cylinder for simple re-keying. Perfect for schools, hospitals, offices and commercial buildings needing reliable, durable door security.
This lock fits standard doors 1-3/4" to 2-1/8" thick with 2-3/4" backset (2-3/8" available). Non-handed design accepts most manufacturer cylinders and works with 6-pin or 7-pin configurations. As an authorized Falcon dealer, E.D. Locks provides expert guidance on handing, backset options, and interchangeable core compatibility. Contact sales@edlocks.com or call 1-877-207-6067 for installation support and fast shipping.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard (2-3/8" available)
- Bolt Projection: 9/16"
- Latch Faceplate: 2-1/4" x 1-1/8"
- Strike: 4-7/8" x 1-1/4" ANSI
- Cylinder: 6-pin or 7-pin, removable
- Keyway: G keyway standard
- Material: Brass, cold formed steel, stainless steel springs
- Finish: Zinc plated and dichromated
- Keys: Two nickel silver keys standard
- Handing: Non-handed
