Description

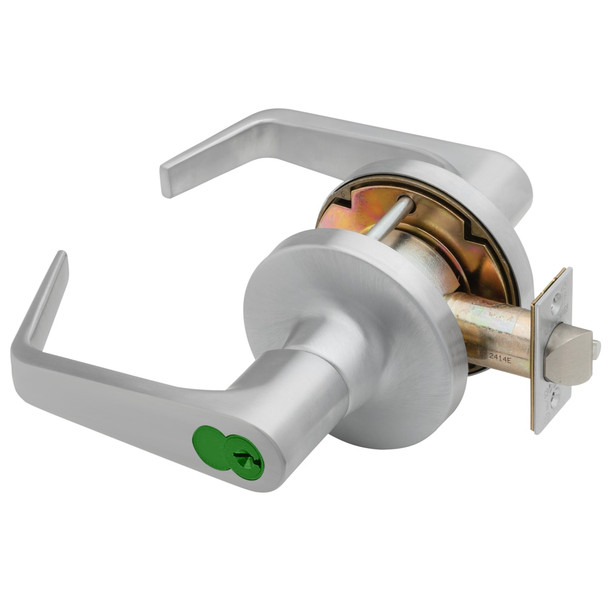

The Falcon T571HD is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. Its removable cylinder design enables quick re-keying without lock removal, making retrofits and updates simple. Built with compression springs, brass components, stainless steel hardware, and zinc-plated steel construction, this lock exceeds ANSI/BHMA Grade 1 testing standards.
Standard for 1-3/4" to 2-1/8" door thickness with 2-3/4" backset; adapters and alternatives are available. The lock accepts any manufacturer's cylinder (standard 6-pin, 7-pin, or interchangeable core options). As an authorized Falcon dealer, E.D. Locks offers expert guidance on configuration, keying, and installation. Contact sales@edlocks.com or call 1-877-207-6067 for assistance selecting the right setup.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" (standard); thin door adapter available
- Backset: 2-3/4" (standard); 2-3/8" available; 5" with link
- Bolt Projection: 9/16" (standard); 3/4" available
- Latch Faceplate: 2-1/4" x 1-1/8" (standard)
- Cylinder Pinning: 6-pin (standard); 5 pinned; 6-pin or 7-pin available
- Keyway: G (conventional); A (interchangeable core)
- Cylinder Format: Standard, small format (SFIC), or large format interchangeable core
- Handing: Non-handed
- Material: Brass and cold-formed steel (zinc plated, dichromated); stainless steel springs; phosphor bronze cylinder springs
- Trim: Heavy wrought brass or bronze roses; pressure cast levers
- Strike: 4-7/8" x 1-1/4" ANSI (curved lip, ANSI A115.2 compliant)
- Keys Furnished: Two nickel silver keys (standard)
