Description

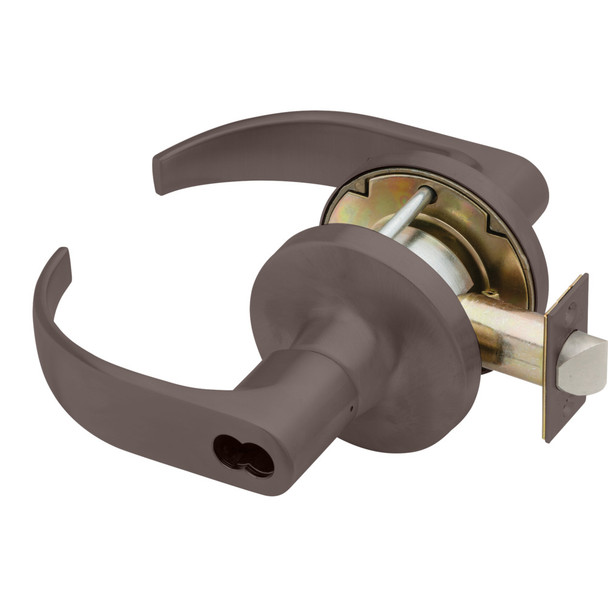

The Falcon T381BD is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. Built with compression springs exceeding ANSI/BHMA Grade 1 standards, this lock features a removable cylinder for quick re-keying and retrofitting. Ideal for schools, hospitals, government buildings, and commercial facilities demanding durability and reliability.
This lock fits standard doors 1-3/4" to 2-1/8" thick with 2-3/4" backset (2-3/8" and 5" options available). The cylinder is non-handed, drilled with 6-pin chambers and pinned in 5, with 6 or 7-pin configurations available. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on cylinder options, keying, and compatibility with your door hardware needs.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard; thin door adapter kit available
- Backset: 2-3/4" standard; 2-3/8" and 5" options available
- Bolt Projection: 9/16" standard; 3/4" available
- Handing: Non-handed
- Cylinder: 6-pin drilled, pinned in 5; 6 or 7-pin available; removable for re-keying
- Keyway: G standard on conventional cylinders; A standard on I/C core
- Material: Brass or cold-formed steel, zinc plated and dichromated; stainless steel springs
- Trim: Heavy wrought brass or bronze roses; pressure-cast levers
- Latch Faceplate: 2-1/4" x 1-1/8" standard; adjustable front standard
- Strike: 4-7/8" x 1-1/4" ANSI curved-lip
- Keys: Two nickel silver keys standard
- Interchangeable Core: Available in small format (SFIC) and large format
