Description

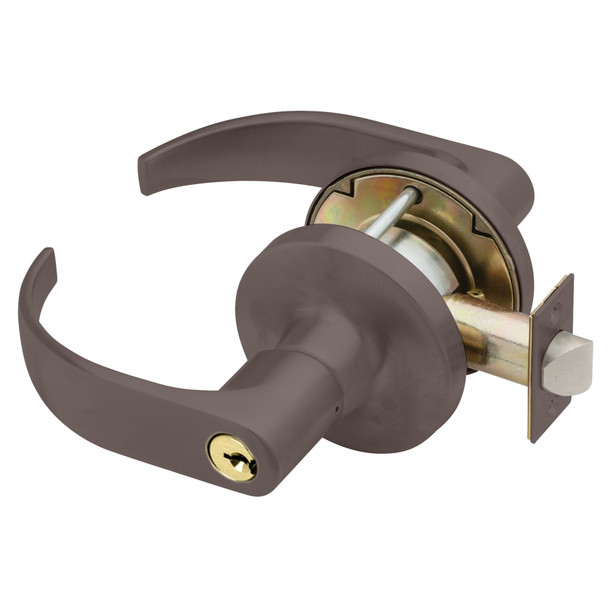

The Falcon T Series T571PD is an extra heavy-duty Grade 1 cylindrical lock built for high-traffic institutional and commercial doors. It exceeds ANSI/BHMA Grade 1 testing with a compression spring mechanism and brass or zinc-plated steel construction. Ideal for schools, hospitals, and office buildings where durability and security matter.
Fits standard 1-3/4" to 2-1/8" doors with 2-3/4" backset (2-3/8" available). The removable cylinder accepts standard 6-pin or optional 7-pin configurations and allows tool-free re-keying without removing the lock. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert advice on cylinders, keying options, and door preparation.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard (2-3/8" available)
- Bolt Projection: 9/16" standard
- Cylinder: 6-pin (pinned in 5), 7-pin available
- Keyway: G keyway standard
- Material: Brass and cold-formed steel, zinc plated and dichromated
- Springs: Stainless steel
- Handing: Non-handed
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- Strike: 4-7/8" x 1-1/4" ANSI
- Keys Furnished: Two nickel silver keys standard
