Description

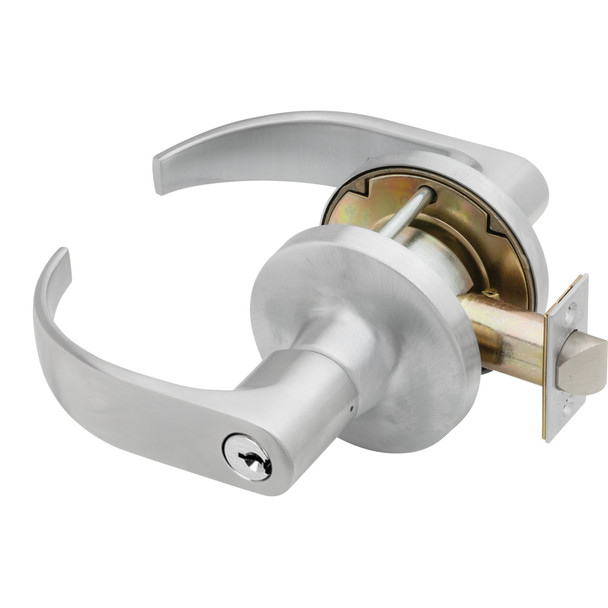

The Falcon T411PD Q 626 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic institutional and commercial applications. Non-handed design with removable cylinder for easy re-keying and building retrofits. Brass and steel construction with stainless steel springs exceed ANSI/BHMA Grade 1 requirements and deliver dependable security at institutional-grade reliability.
Standard for 1-3/4" to 2-1/8" door thickness and 2-3/4" backset; adapters available for thin doors and alternative backsets. Accepts any manufacturer's cylinder with 6-pin or 7-pin options; interchangeable core versions (SFIC and large format) also in stock. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert keying guidance, compatibility confirmation, and project support.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard; thin door adapter (A30775-000-00) available
- Backset: 2-3/4" standard; 2-3/8" available; 5" backset link (A22161-005-10) available
- Handing: Non-handed
- Cylinders: 6-pin standard (5 pinned); 6-pin or 7-pin pinning available; interchangeable core options (SFIC and large format)
- Keyway: G keyway standard (conventional); A keyway standard (I/C core)
- Latch Projection: 9/16" standard; 3/4" projection available
- Latch Faceplate: 2-1/4" x 1-1/8" (square corners, UL listed)
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip (ANSI A115.2 compliant)
- Material: Brass or cold formed steel (zinc plated, dichromated); stainless steel springs; phosphor bronze cylinder springs
- Trim: Heavy wrought brass or bronze roses; pressure cast levers
- Keys: Two nickel silver keys furnished standard
