Description

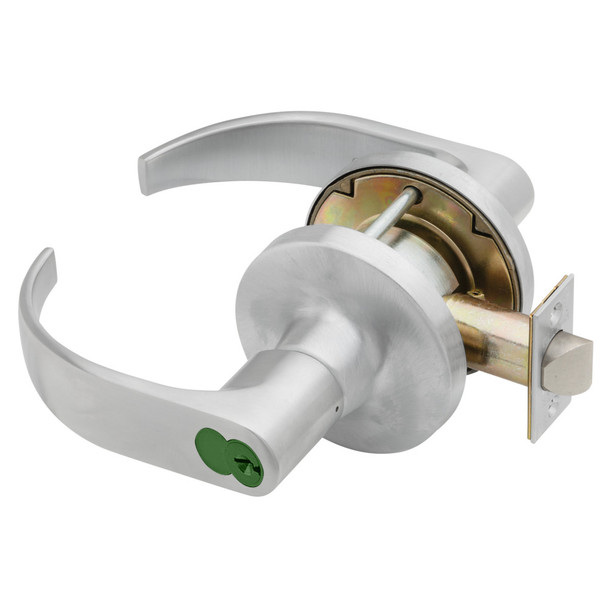

The Falcon T571HD Q 626 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional environments. Its removable cylinder design enables quick re-keying without removing the lock body, simplifying retrofits and building conversions while exceeding ANSI/BHMA Grade 1 testing requirements.
Designed for standard 1-3/4" to 2-1/8" thick doors with 2-3/4" backset; adapter kits and alternative backsets are available. This lock accepts most manufacturers' cylinders and comes preassembled with brass or steel components, zinc-plated and dichromated for corrosion resistance. Contact an authorized E.D. Locks dealer at sales@edlocks.com or 1-877-207-6067 for compatibility guidance and expert installation support.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard (2-3/8" available; 5" with link kit A22161-005-10)
- Cylinder: Drilled 6-pin chambers, pinned in 5 (6-pin and 7-pin options available)
- Interchangeable Core: Small Format (SFIC) and Large Format available
- Keyways: "G" standard ("A" standard on I/C cores)
- Bolt Projection: 9/16" standard (3/4" available)
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners (2-3/4" x 1-1/8" for 3/4" projection)
- Strike: 4-7/8" x 1-1/4" ANSI curved lip
- Materials: Brass or cold-formed steel (zinc-plated, dichromated); stainless steel springs; phosphor bronze cylinder springs; nickel silver keys
- Handing: Non-handed
- Cylinder Housing: Solid brass
- Keys: Two nickel silver keys standard
- Trim: Heavy wrought brass or bronze roses; pressure-cast lever assembly
- Latch: UL listed with adjustable front
- Thin Door Adapter: A30775-000-00 (for doors under 1-3/4")
