Description

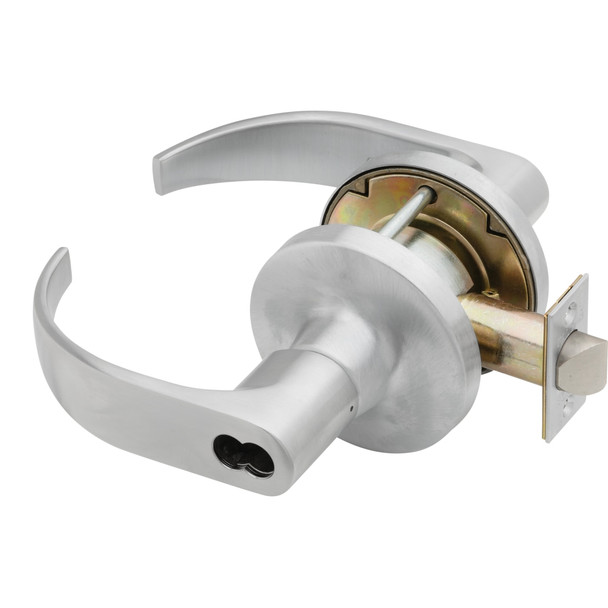

The Falcon T Series T521BD Q 626 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. It exceeds ANSI/BHMA Grade 1 testing requirements and features a compression spring design with brass and stainless steel construction for durability and corrosion resistance in demanding environments.
This lock accepts standard manufacturer cylinders and supports easy re-keying without removal from the door, simplifying retrofits and building updates. It fits standard 1-3/4" to 2-1/8" door thickness with 2-3/4" backset. As an authorized Falcon dealer, E.D. Locks provides expert guidance on cylinder options, keying specifications, and installation. Contact sales@edlocks.com or call 1-877-207-6067 for questions on compatibility or custom configurations.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard (2-3/8" available)
- Bolt Projection: 9/16"
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Cylinder: 6-pin chambers, pinned in 5 (6 or 7-pin available)
- Keyway: G keyway standard
- Material: Brass, cold formed steel (zinc plated, dichromated), stainless steel springs
- Trim: Heavy wrought brass or bronze roses, pressure cast levers
- Handing: Non-handed
- Keys: Two nickel silver keys furnished standard
