Description

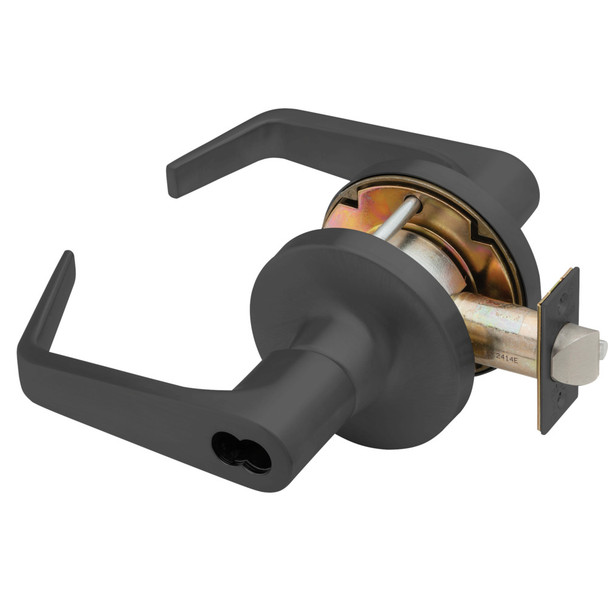

The Falcon T501BD D 622 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. It features a compression spring design that exceeds ANSI/BHMA Grade 1 testing requirements, making it ideal for schools, hospitals, and commercial facilities that demand durability and reliability at a competitive price point.
This lock accepts any manufacturer's cylinder and allows quick, tool-free re-keying by removing the cylinder assembly, simplifying retrofits and maintenance. Compatible with doors 1-3/4" to 2-1/8" thick (thin-door adapters available). As an authorized Falcon dealer, E.D. Locks provides expert guidance on backsets, keyways, keying options, and installation. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard (thin-door adapter kit A30775-000-00 available)
- Backset: 2-3/4" standard (2-3/8" available; 5" available with Link A22161-005-10)
- Cylinder: 6-pin chambers, pinned in 5 (6-pin pinning available at no cost; 7-pin available)
- Cylinder Design: Removable for re-keying; interchangeable core (SFIC and large format) options available
- Keyway: G (standard conventional); A (standard I/C core); optional keyways available
- Material: Brass or cold-formed steel parts, zinc plated and dichromated; stainless steel springs
- Trim: Heavy wrought brass or bronze roses with pressure cast inserts; pressure cast levers
- Bolt Projection: 9/16" standard (3/4" also available)
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners standard (UL listed)
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip (ANSI A115.2 compliant)
- Handing: Non-handed
- Keys: Two nickel silver keys furnished standard
