Description

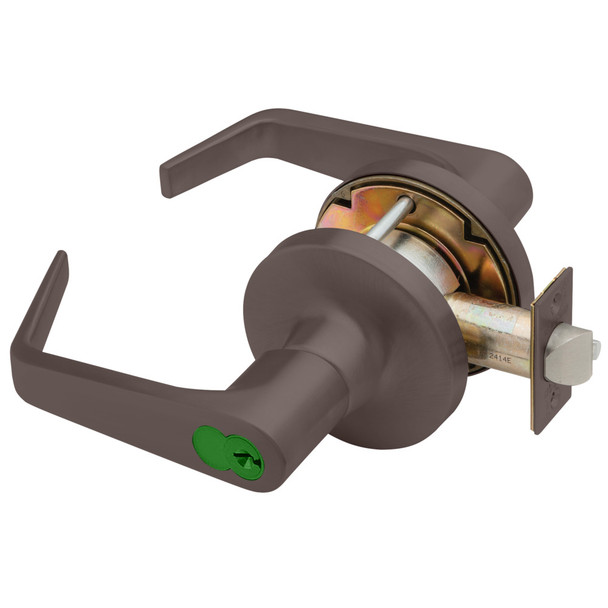

The Falcon T501HD is an extra heavy-duty Grade 1 cylindrical lock built for high-traffic institutional and commercial doors. With a compression spring that exceeds ANSI/BHMA Grade 1 requirements, it withstands abuse in schools, hospitals, offices, and public buildings where durability and security matter.
This lock accepts universal cylinders and removes easily for re-keying without door modification, making retrofits simple. Brass and stainless steel construction ensures long-term reliability. Available in multiple backsets and door thicknesses with adapters. Contact our security experts at sales@edlocks.com or 1-877-207-6067 for help selecting the right configuration and keying options for your installation.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard (thin door adapter available)
- Backset: 2-3/4" standard; 2-3/8" available; 5" with link
- Bolt Projection: 9/16" standard; 3/4" available
- Cylinders: 6-pin chambers (pinned in 5); 6, 7-pin, and interchangeable core options
- Keyway: G-keyway standard (A-keyway on interchangeable core)
- Handing: Non-handed
- Material: Brass and cold-formed steel with zinc plating; stainless steel springs
- Trim: Wrought brass or bronze roses; pressure-cast levers
- Latch Faceplate: 2-1/4" x 1-1/8" standard
- Keys: Two nickel silver keys furnished
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip
