Description

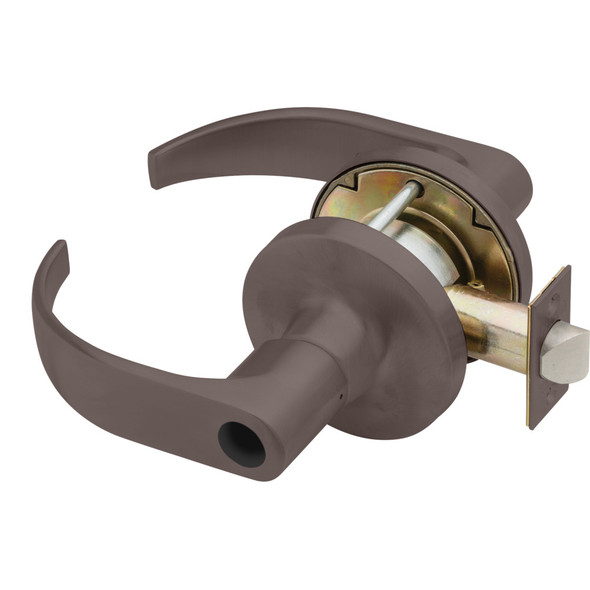

The Falcon T501HD Q 613 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. Its compression spring construction exceeds ANSI/BHMA Grade 1 testing requirements, delivering reliable security and durability for doors subject to constant use without compromise on performance or cost.
This lock accommodates any manufacturer's removable cylinder for simple re-keying and retrofitting. Standard configuration fits 1-3/4" to 2-1/8" doors with 2-3/4" backset; thin door and alternative backset kits are available. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on cylinder options, keying, and compatibility to ensure the right specification for your building.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard; thin door adapter kit (A30775-000-00) available
- Backset: 2-3/4" standard; 2-3/8" available; 5" backset with link (A22161-005-10)
- Mechanism: Brass or cold formed steel, zinc plated and dichromated; stainless steel springs
- Attachment: Through-bolted with (2) 10-32 screws
- Handing: Non-handed
- Cylinders: 6-pin chambers, pinned in 5 (6-chamber or 7-pin available); removable for re-keying
- Interchangeable Core: SFIC and large format available
- Keyways: "G" standard (conventional); "A" standard (I/C core); optional keyways available
- Trim: Heavy wrought brass or bronze roses; pressure cast levers
- Latch: 9/16" bolt projection, UL listed, 2-1/4" x 1-1/8" faceplate standard; 3/4" projection with 2-3/4" backset also available
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip
- Keys: Two nickel silver keys furnished standard
