Description

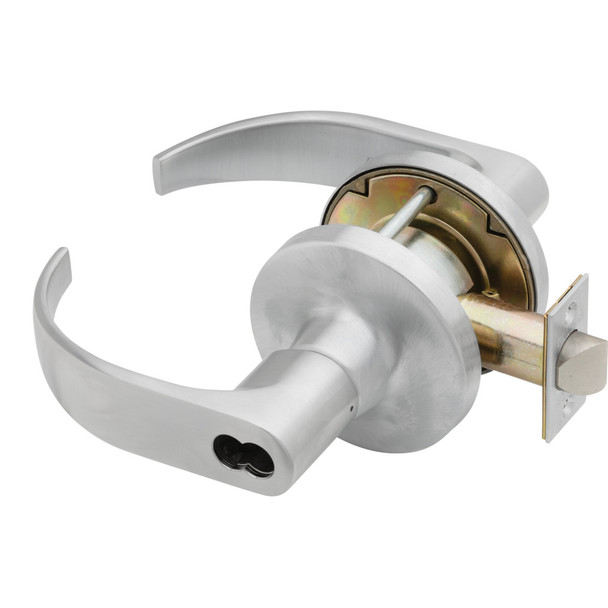

The Falcon T Series T521JD-SCH Q 626 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse environments. Built with a compression spring that exceeds ANSI/BHMA Grade 1 testing standards, this lock delivers reliable security for institutional applications, commercial doors, and demanding institutional settings where durability and performance are non-negotiable.
This lock accepts any manufacturer's cylinder and features easily removable cylinders for quick re-keying, making retrofitting straightforward. Standard configuration supports 1-3/4" to 2-1/8" door thickness and 2-3/4" backset, with adapter kits and alternatives available. As an authorized Falcon dealer, E.D. Locks provides expert guidance on configuration, keying options, and installation. Contact sales@edlocks.com or call 1-877-207-6067 for personalized support.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard (thin door adapter kit available)
- Backset: 2-3/4" standard (2-3/8" available, 5" with link)
- Bolt Projection: 9/16" standard (3/4" available)
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners standard
- Strike: 4-7/8" x 1-1/4" ANSI curved lip
- Cylinder: 6-pin, pinned in 5 (6 or 7-pin available)
- Keyway: G keyway standard (A keyway on I/C cores)
- Handing: Non-handed
- Cylinder Housing: Solid brass with phosphor bronze springs
- Keys: Two nickel silver keys furnished standard
- Interchangeable Core: Available in SFIC and large format
- Attachment: Through-bolted with (2) 10-32 screws
- Construction: Brass or cold-formed steel, zinc-plated and dichromated for rust resistance; stainless steel springs
- UL Listed: Yes
