Description

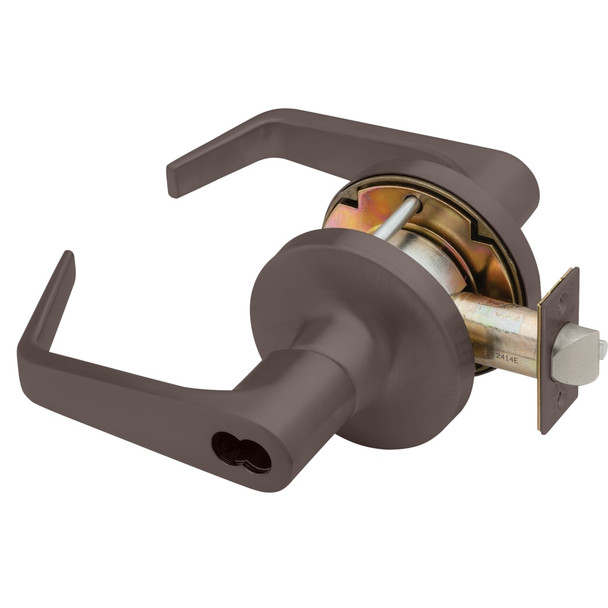

The Falcon T521BD D 613 is a heavy-duty Grade 1 cylindrical lock engineered for high-traffic institutional and commercial applications. This extra-durable lock exceeds ANSI/BHMA Grade 1 standards and features a compression spring design with brass and stainless steel construction for reliable long-term performance in demanding environments.
The lock accepts any manufacturer's cylinder and supports quick re-keying via removable cylinder assemblies, making retrofitting simple. Standard for 1-3/4" to 2-1/8" doors with 2-3/4" backset; adapters and alternatives are available. As an authorized Falcon dealer, E.D. Locks provides expert assistance with specification, installation, and keying. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for guidance.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard (thin door adapter kit available)
- Backset: 2-3/4" standard (2-3/8" also available; 5" link available)
- Bolt Projection: 9/16" standard (3/4" available)
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners, UL listed
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Cylinders: Drilled with 6-pin chambers, pinned in 5 (6-pin and 7-pin available)
- Keyway: "G" standard ("A" standard on I/C core)
- Cylinder Housing: Solid brass with phosphor bronze springs
- Keys Furnished: Two nickel silver keys standard
- Material: Brass and cold formed steel with zinc plating and dichromate finish
- Springs: Stainless steel body springs; phosphor bronze cylinder springs
- Handing: Non-handed
- Interchangeable Core: Available in small format (SFIC) and large format
