Description

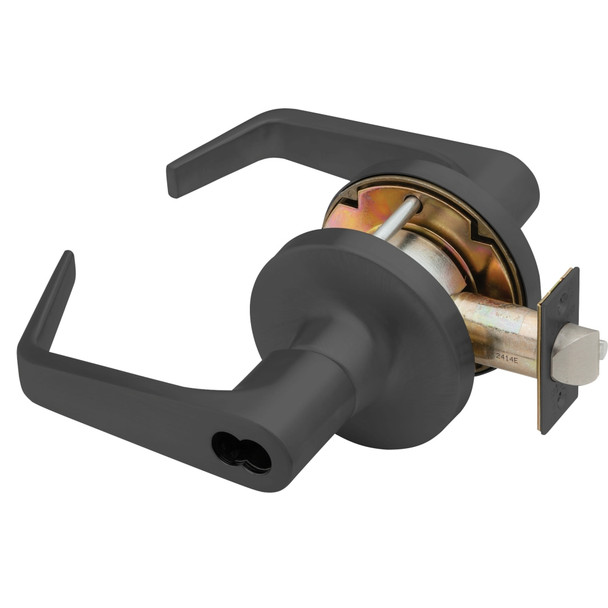

The Falcon T521BD D 622 is an extra heavy-duty Grade 1 cylindrical lock built for high-traffic and heavy-abuse environments. Ideal for institutional applications, schools, and commercial buildings, this lock exceeds ANSI/BHMA Grade 1 testing requirements and features a compression spring design for superior durability and reliability in demanding settings.
The T521BD D 622 accepts any manufacturer's cylinder and allows quick re-keying through removable cylinder assemblies, making retrofitting simple. Fits standard 1-3/4" to 2-1/8" doors with 2-3/4" backset. As an authorized Falcon dealer, E.D. Locks provides expert support and guidance. Contact sales@edlocks.com or call 1-877-207-6067 for assistance selecting the right configuration, keying options, or trim finishes for your application.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard (2-3/8" available)
- Bolt Projection: 9/16" standard
- Cylinder: 6-pin chambers, pinned in 5 (6 or 7-pin available)
- Keyway: G keyway standard (A keyway on interchangeable core)
- Handing: Non-handed
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- Strike: 4-7/8" x 1-1/4" ANSI strike
- Material: Brass or cold formed steel, zinc plated and dichromated
- Keys: Two nickel silver keys standard
