Description

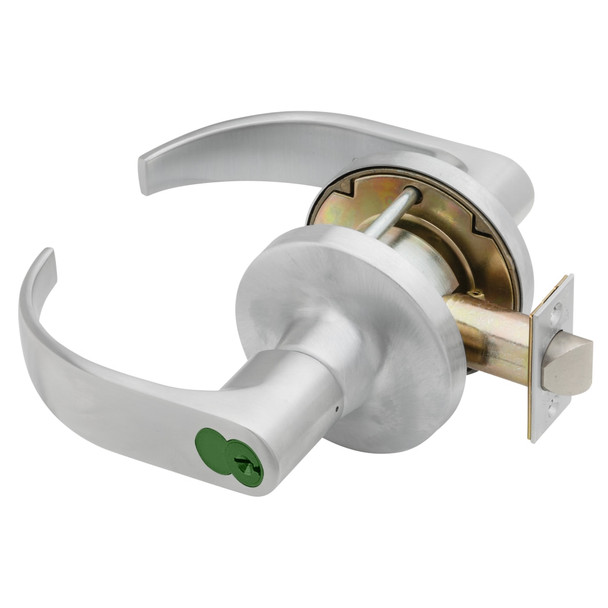

The Falcon T521HD Q 626 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. The removable cylinder accepts most manufacturers' designs and enables quick re-keying without removing the lock body, simplifying retrofits and maintenance across multi-building facilities.
Standard door thickness is 1-3/4" to 2-1/8" with backset options of 2-3/8" or 2-3/4". Interchangeable core cylinders (SFIC and large format) are available. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for compatibility verification, handing guidance, and expert keying support as an authorized Falcon dealer.
Specifications
- Brand: Falcon
- Model: T521HD Q 626
- Grade: ANSI/BHMA Grade 1
- Type: Cylindrical Lock
- Door Thickness: 1-3/4" to 2-1/8" standard (adapter kit A30775-000-00 available for thinner doors)
- Backset: 2-3/4" standard; 2-3/8" available; 5" available with link A22161-005-10
- Handing: Non-handed
- Cylinder: 6-pin chambers, pinned in 5 (6-chamber or 7-pin available); removable for re-keying
- Cylinder Options: Standard "G" keyway or "A" keyway (I/C core); SFIC and large format interchangeable cores available
- Mechanism: Brass or cold-formed steel, zinc-plated and dichromated; stainless steel springs
- Trim: Heavy wrought brass or bronze roses with pressure-cast inserts; pressure-cast levers
- Latch: 9/16" bolt projection standard, UL listed, 2-1/4" x 1-1/8" faceplate with square corners; 3/4" projection option available
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip, ANSI A115.2 compliant
- Keys: Two nickel silver keys furnished standard
- Attachment: Threaded mounting nuts; through-bolted trim assembly with (2) 10-32 screws
- Fasteners: Combination screws for wood or metal doors and frames
