Description

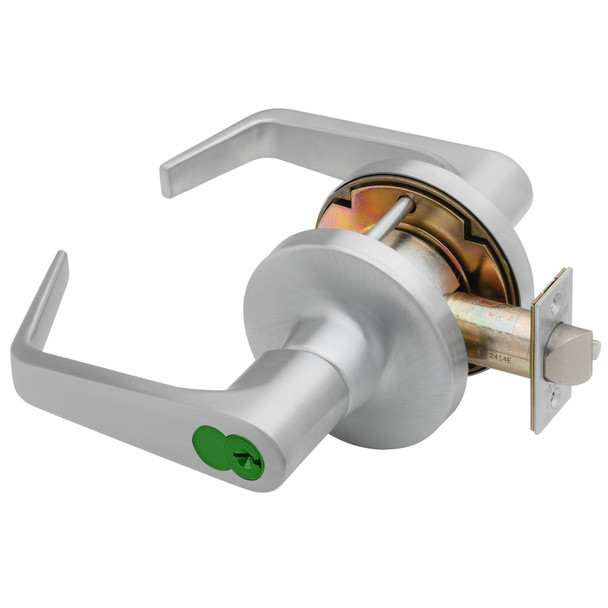

The Falcon T521HD D 626 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. Non-handed design with brass or zinc-plated steel construction and stainless steel springs exceeds ANSI/BHMA Grade 1 testing. Removable cylinder allows quick re-keying and retrofitting without replacing the entire lock body.
Standard 1-3/4" to 2-1/8" door thickness with 2-3/4" backset; thin-door and alternative backset kits available. Accepts most manufacturers' cylinders in conventional or interchangeable core formats. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on handing, keyway selection, and installation support as an authorized Falcon dealer.
Specifications
- Grade: 1 (ANSI/BHMA)
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard; 2-3/8" available
- Bolt Projection: 9/16" standard; 3/4" available
- Cylinder: 6-pin chambers (pinned in 5, 6, or 7-pin options)
- Keyway: G standard (conventional); A standard (interchangeable core)
- Latch Faceplate: 2-1/4" x 1-1/8" standard
- Strike: 4-7/8" x 1-1/4" ANSI
- Material: Brass/cold formed steel (zinc plated, dichromated); stainless steel springs
- Keys: Two nickel silver keys standard
- Handing: Non-handed
