Description

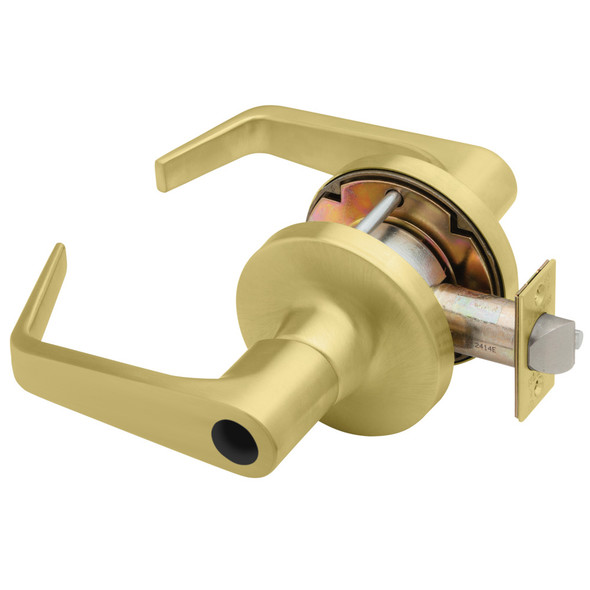

The Falcon T521LD is an extra heavy-duty Grade 1 cylindrical lock built for high-traffic and heavy-abuse institutional applications. Its compression spring construction exceeds ANSI/BHMA Grade 1 testing requirements, while removable cylinders enable quick re-keying for easy retrofits and campus-wide key management.
Standard 2-3/4" backset fits 1-3/4" to 2-1/8" doors; thin-door and alternative backset kits are available. Non-handed design works on any door. For keying options, compatibility questions, or expert guidance on specification, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Door Thickness: 1-3/4" to 2-1/8" standard (thin door adapter kit available)
- Backset: 2-3/4" standard (2-3/8" and 5" options available)
- Handing: Non-handed
- Cylinder: 6-pin, pinned in 5 (6 or 7-pin available); removable for re-keying
- Keyway: G keyway standard (A keyway standard on interchangeable core)
- Latch: 9/16" bolt projection, UL listed, 2-1/4" x 1-1/8" faceplate
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Materials: Brass or zinc-plated cold-formed steel; stainless steel springs; phosphor bronze cylinder springs
- Keys: Two nickel silver keys furnished standard
- Finish: 626 (Satin Chrome)
