Description

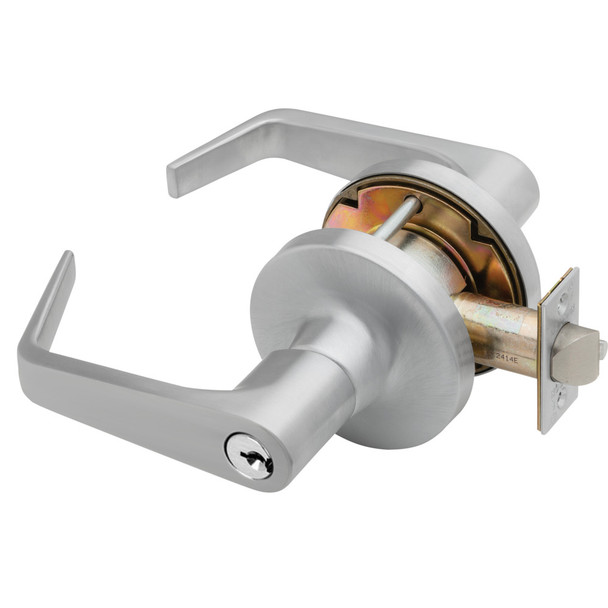

The Falcon T571PD is a heavy-duty Grade 1 cylindrical lock engineered for high-traffic and high-abuse institutional applications. It accepts any manufacturer's cylinder with easy removal for quick re-keying, making retrofits simple. The compression spring design exceeds ANSI/BHMA Grade 1 testing requirements, delivering reliable security and durability at a solid value.
Standard for 1-3/4" to 2-1/8" doors with 2-3/4" backset; adapters and alternative backsets are available. All components use brass or cold-formed steel with zinc plating and dichromate coating for rust resistance, plus stainless steel springs. As an authorized Falcon dealer, E.D. Locks provides expert guidance on handing, cylinders, keyways, and installation. Contact sales@edlocks.com or call 1-877-207-6067 for personalized support.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard; 2-3/8" available
- Bolt Projection: 9/16" standard
- Latch Faceplate: 2-1/4" x 1-1/8" (square corners)
- Cylinder: 6-pin standard, 7-pin available
- Keyway: G keyway standard (A keyway for interchangeable core)
- Trim Material: Wrought brass or bronze roses; pressure-cast levers
- Strike: 4-7/8" x 1-1/4" ANSI curved-lip
- Hardware: Zinc-plated and dichromated; stainless steel springs; phosphor bronze cylinder springs
- Keys: Two nickel silver keys furnished standard
