Description

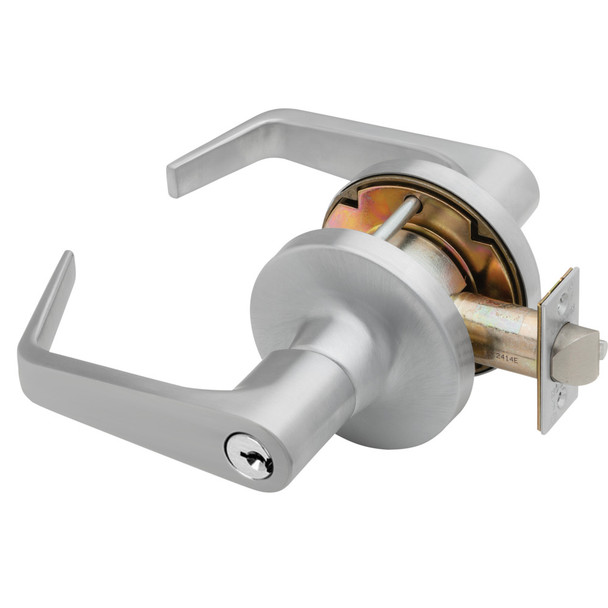

The Falcon T521PD D 626 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. Non-handed design accepts any manufacturer's cylinder with easy removal for quick re-keying. Compression spring construction exceeds ANSI/BHMA Grade 1 testing, delivering durability and reliability at a solid price point.
Standard door thickness accommodates 1-3/4" to 2-1/8"; thin-door adapters available. Backset options include 2-3/4" standard or 2-3/8", with 5" backset link available. All components feature brass or cold-formed steel construction with zinc plating and dichromate rust resistance. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on specification, keying options, and interchangeable core availability.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard; 2-3/8" available
- Bolt Projection: 9/16" standard; 3/4" available
- Cylinders: 6-pin standard (5-pin pinned), 6-pin or 7-pin available
- Keyway: "G" standard (conventional); "A" standard (interchangeable core)
- Material: Brass or cold-formed steel, zinc plated and dichromated
- Springs: Stainless steel (body); phosphor bronze (cylinder)
- Trim: Heavy wrought brass or bronze roses; pressure cast levers
- Latch: 9/16" with 2-1/4" x 1-1/8" faceplate standard
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Keys: Two nickel silver keys furnished
- Handing: Non-handed
