Description

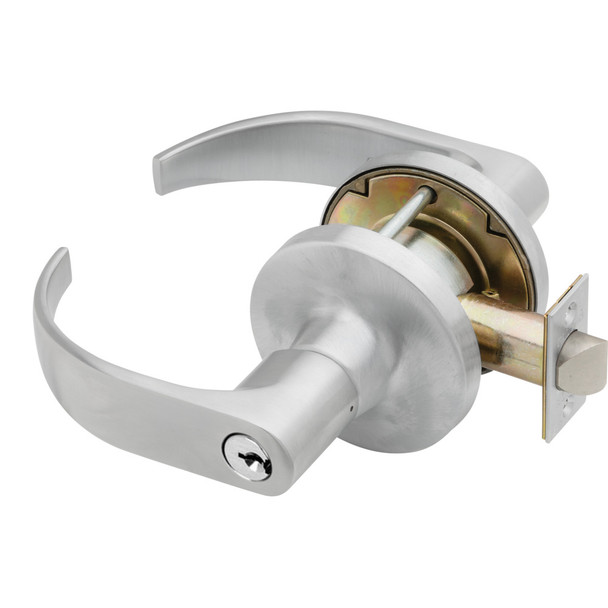

The Falcon T521PD is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. It features a compression spring design that exceeds ANSI/BHMA Grade 1 testing requirements, making it ideal for buildings requiring maximum durability and security at a competitive price point.
This lock accepts standard manufacturer cylinders and allows quick, tool-free re-keying for easy retrofitting. Available for door thickness 1-3/4" to 2-1/8" with standard 2-3/4" backset. Thin door adapters and alternative backsets are available. For expert guidance on specifications, keying options, and installation, contact E.D. Locks at sales@edlocks.com or 1-877-207-6067.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/8" to 2-1/8" standard (thin door adapter kit A30775-000-00 available for thinner doors)
- Backset: 2-3/4" standard; 2-3/8" also available; 5" available with Link A22161-005-10
- Handing: Non-handed
- Cylinder: 6-pin chambers, pinned in 5 (6-chamber pinning available at no cost); 7-pin cylinders available; interchangeable core (SFIC and large format) options available
- Keyway: G keyway standard on conventional cylinders; A keyway standard on I/C core cylinders
- Cylinder Material: Solid brass housing and plugs with phosphor bronze springs
- Mechanism: Brass or cold formed steel parts, zinc plated and dichromated; stainless steel springs
- Bolt Projection: 9/16" standard (3/4" projection with 2-3/4" backset also available)
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners standard
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip
- Attachment: Through-bolted with (2) 10-32 screws
- Trim: Heavy wrought brass or bronze roses with pressure cast inserts; pressure cast lever arms finished to match
- Keys Furnished: Two nickel silver keys standard
