Description

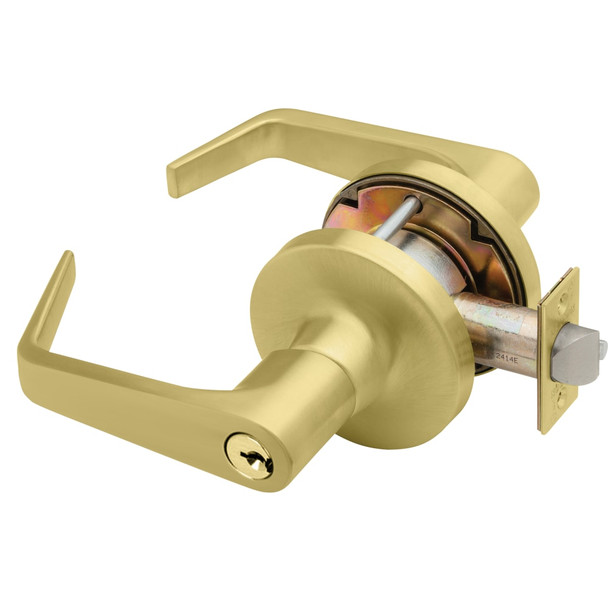

The Falcon T521PD D 606 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. It exceeds ANSI/BHMA Grade 1 testing requirements with a compression spring design, brass and stainless steel construction, and zinc-plated components for rust resistance. Ideal for schools, hospitals, government buildings, and facilities demanding durability and security.
Standard 2-3/4" backset fits 1-3/4" to 2-1/8" doors; thin door adapters and alternate backsets available. The removable cylinder accepts 5-pin (standard) or 6-pin pinning and supports interchangeable core designs for easy rekeying without replacing the entire lock. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for specification confirmation, handing options, and authorized dealer support.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard (2-3/8" available; 5" with link A22161-005-10)
- Bolt Projection: 9/16" standard (3/4" available)
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners standard
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Cylinder: 6-pin chambers pinned in 5 (6 or 7-pin available)
- Cylinder Housing: Solid brass with phosphor bronze springs
- Trim Material: Heavy wrought brass or bronze roses; pressure cast levers
- Keys: Two nickel silver keys standard
- Keyway: "G" standard on conventional cylinders; "A" on interchangeable core
- Handing: Non-handed
- Attachment: Threaded mounting nuts; through-bolted assembly with (2) 10-32 screws
