Description

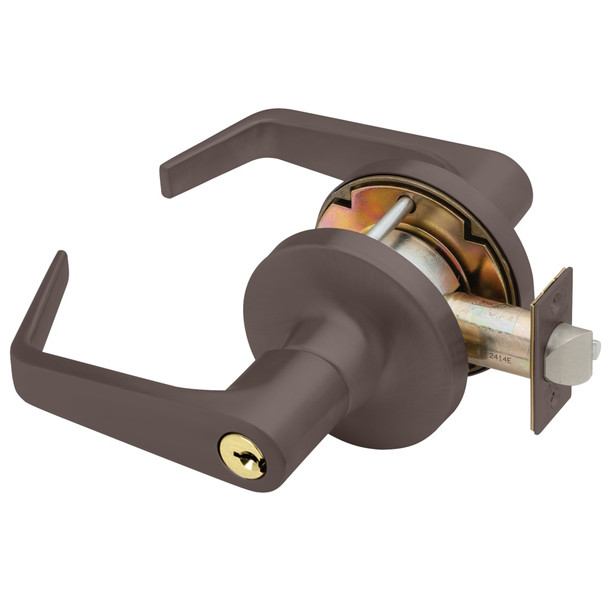

The Falcon T561PD is a Grade 1 heavy-duty cylindrical lock engineered for high-traffic and high-abuse institutional applications. It features removable cylinders for quick re-keying, making retrofits and building updates simple and cost-effective. Non-handed design with compression spring technology exceeds ANSI/BHMA Grade 1 testing standards.
Standard for 1-3/4" to 2-1/8" doors with 2-3/4" backset; thin door adapters and alternative backsets available. Brass and stainless steel construction resists rust and wear. As an authorized Falcon dealer, E.D. Locks offers expert guidance on handing, keying, and compatibility. Contact sales@edlocks.com or call 1-877-207-6067 for application support.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard (2-3/8" available)
- Bolt Projection: 9/16" UL listed
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- Handing: Non-handed
- Cylinder: 6-pin drilled, pinned in 5 (6 or 7-pin available)
- Keyway: G keyway standard
- Material: Brass and cold-formed steel, zinc plated, stainless steel springs
- Trim: Heavy wrought brass roses, pressure cast levers
- Strike: 4-7/8" x 1-1/4" ANSI curved lip
- Keys: Two nickel silver keys furnished
