Description

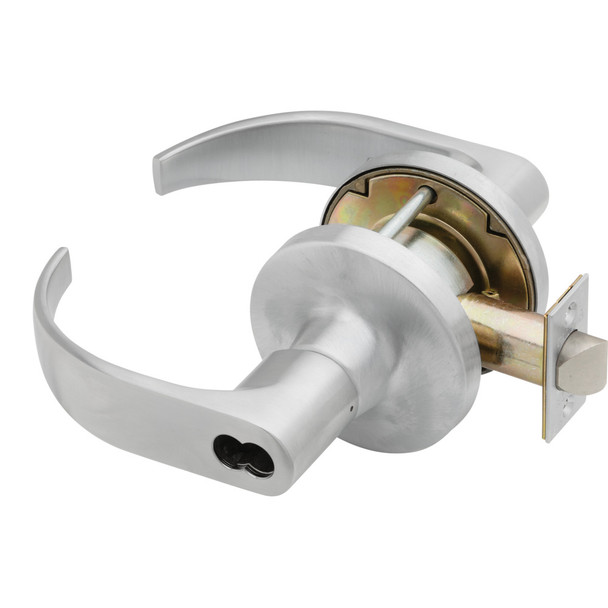

The Falcon T571BD Q 626 is a heavy-duty Grade 1 cylindrical lock built for high-traffic commercial and institutional doors. Its compression spring construction exceeds ANSI/BHMA Grade 1 testing and handles heavy-abuse environments. The removable cylinder allows quick re-keying without replacing the entire lock, making retrofits and maintenance simple and cost-effective.
This lock fits standard 1-3/4" to 2-1/8" doors with 2-3/4" backset (2-3/8" also available). Brass and steel components are zinc-plated for rust resistance, with stainless steel springs. As an authorized Falcon dealer, E.D. Locks offers expert guidance on cylinder options, keying, and installation. Contact sales@edlocks.com or call 1-877-207-6067 for free compatibility advice.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard (thin door kit available)
- Backset: 2-3/4" standard; 2-3/8" available
- Bolt Projection: 9/16" standard
- Cylinder: 6-pin (pinned in 5), removable for re-keying
- Keyway: G keyway standard
- Material: Brass and cold-formed steel, zinc-plated and dichromated
- Springs: Stainless steel
- Keys: Two nickel silver keys furnished
- Handing: Non-handed
- Strike: 4-7/8" x 1-1/4" ANSI strike
