Description

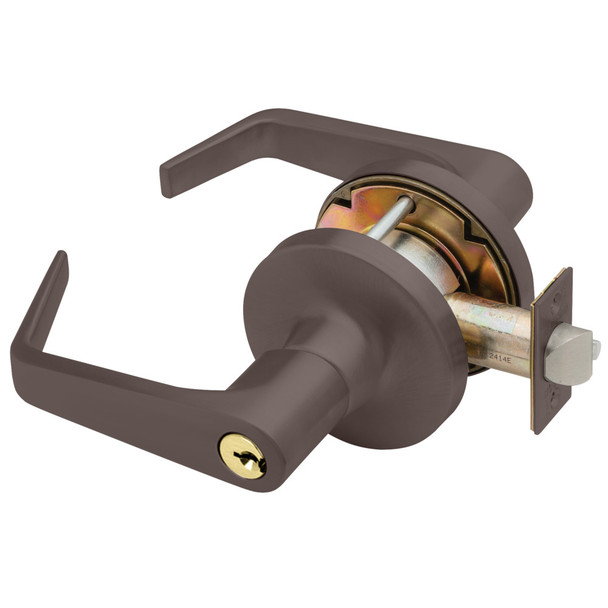

The Falcon T571PD D 613 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. Non-handed design with removable cylinder accepts standard manufacturer cylinders, making it ideal for new installations and retrofits where flexibility and durability matter.
Fits standard 1-3/4" to 2-1/8" doors with 2-3/4" backset; thin door adapters and alternative backsets available. Brass and stainless steel construction resists rust. As an authorized Falcon dealer, E.D. Locks provides expert configuration guidance and keying support. Contact sales@edlocks.com or call 1-877-207-6067 for application assistance.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard; thin door adapter (A30775-000-00) available
- Backset: 2-3/4" standard; 2-3/8" available; 5" with link (A22161-005-10)
- Bolt Projection: 9/16" standard; 3/4" available
- Handing: Non-handed
- Cylinder: 6-pin drilled, pinned in 5 (6-pin or 7-pin available); removable for rekeying
- Keyway: G standard (conventional); A standard (interchangeable core)
- Construction: Brass and cold-formed steel, zinc plated and dichromated; stainless steel springs
- Latch Faceplate: 2-1/4" x 1-1/8" standard; adjustable front
- Strike: 4-7/8" x 1-1/4" ANSI curved lip
- Keys: Two nickel silver keys standard
