Description

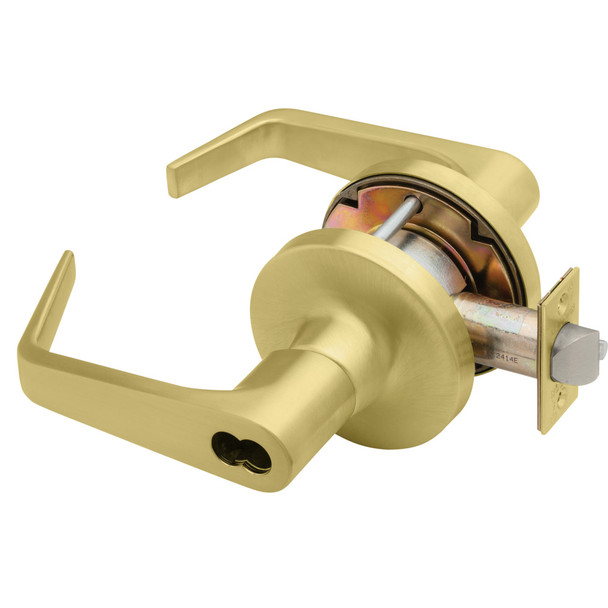

The Falcon T581BD is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. Non-handed design with removable cylinder accepts any manufacturer's 6-pin cylinder, making re-keying quick and simple for retrofit projects. Compression spring construction exceeds ANSI/BHMA Grade 1 testing requirements, delivering durability at competitive pricing.
Standard for 1-3/4" to 2-1/8" doors with 2-3/4" backset; thin door kits and alternative backsets available. Brass and cold-formed steel parts are zinc-plated and dichromated for rust resistance. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, interchangeable core availability, and custom configurations to match your building's security needs.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard, 2-3/8" also available
- Bolt Projection: 9/16" standard
- Cylinder: 6-pin, removable, drilled for rekey
- Keyway: G keyway standard
- Handing: Non-handed
- Material: Brass and cold-formed steel, zinc-plated and dichromated
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Keys: Two nickel silver keys furnished standard
