Description

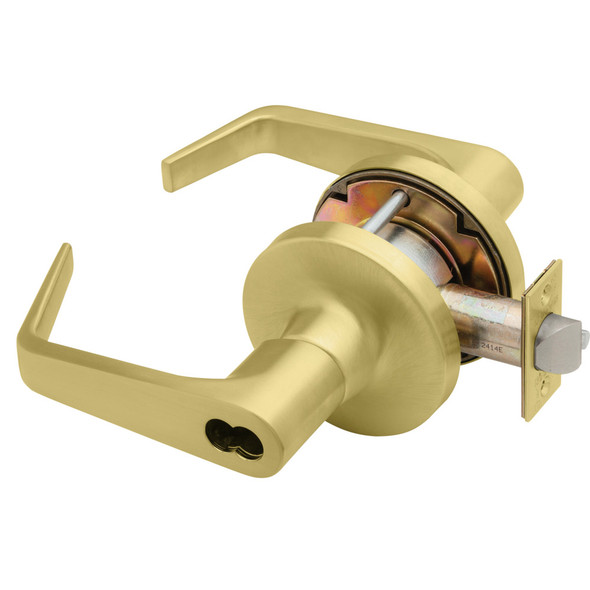

The Falcon T581BD is an extra heavy-duty Grade 1 cylindrical lock built for high-traffic institutional and commercial doors. It exceeds ANSI/BHMA Grade 1 testing requirements with a compression spring design and solid brass or zinc-plated steel construction. Ideal for schools, offices, and facilities demanding durability and reliability.
This lock fits standard 1-3/4" to 2-1/8" doors with a 2-3/4" backset and accepts any manufacturer's cylinder for maximum flexibility. The removable cylinder allows quick re-keying without door modification. As an authorized Falcon dealer, E.D. Locks provides expert configuration guidance and free shipping on orders over $450. Contact sales@edlocks.com or call 1-877-207-6067 for assistance selecting the right setup.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard (thin door adapter available)
- Backset: 2-3/4" standard (2-3/8" available; 5" with link)
- Bolt Projection: 9/16" (3/4" available)
- Cylinder: 6-pin chambers, pinned in 5 (6 or 7-pin available)
- Keyway: G keyway standard
- Latch Faceplate: 2-1/4" x 1-1/8"
- Strike: 4-7/8" x 1-1/4" ANSI
- Trim: Heavy wrought brass or bronze roses; pressure cast levers
- Material: Brass or cold-formed steel, zinc plated and dichromated; stainless steel springs
- Handing: Non-handed
- Keys: Two nickel silver keys furnished
- Interchangeable Core: Available in small format (SFIC) and large format
