Description

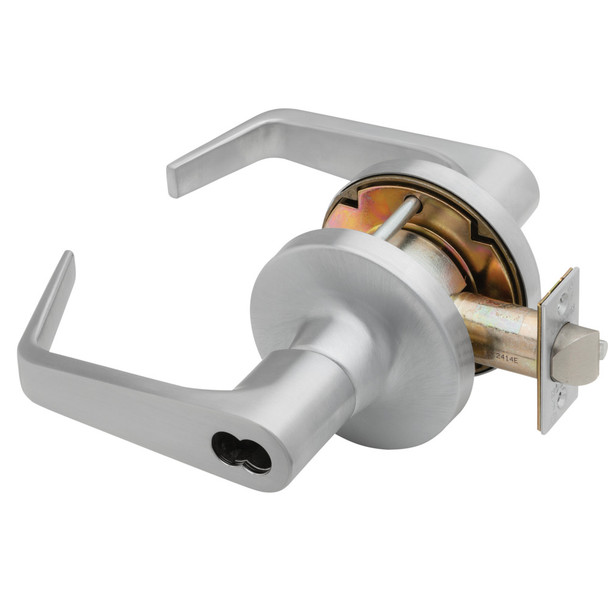

The Falcon T Series is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic institutional and commercial applications. This non-handed lock accepts any manufacturer's cylinder and features a compression spring design that exceeds ANSI/BHMA Grade 1 testing requirements, delivering reliable security and durability for demanding environments.
Designed for standard door thickness of 1-3/4" to 2-1/8" with a 2-3/4" backset, this lock offers quick re-keying capability and supports 6-pin or 7-pin cylinders. As an authorized Falcon dealer, E.D. Locks provides expert guidance on configuration, thin-door adapters, and backset options. Contact sales@edlocks.com or call 1-877-207-6067 for personalized support.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/8" to 2-1/8" (standard); thin door adapter available
- Backset: 2-3/4" standard; 2-3/8" optional; 5" available with link
- Bolt Projection: 9/16" (standard) or 3/4" optional
- Cylinder: 6-pin (5 pinned standard) or 7-pin; removable for re-keying
- Keyway: "G" (conventional) or "A" (interchangeable core)
- Material: Brass or cold-formed steel, zinc plated; stainless steel springs
- Handing: Non-handed
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- ANSI Strike: 4-7/8" x 1-1/4" curved lip
- Keys: Two nickel silver keys included
- Finish: Satin Chrome (626)
