Description

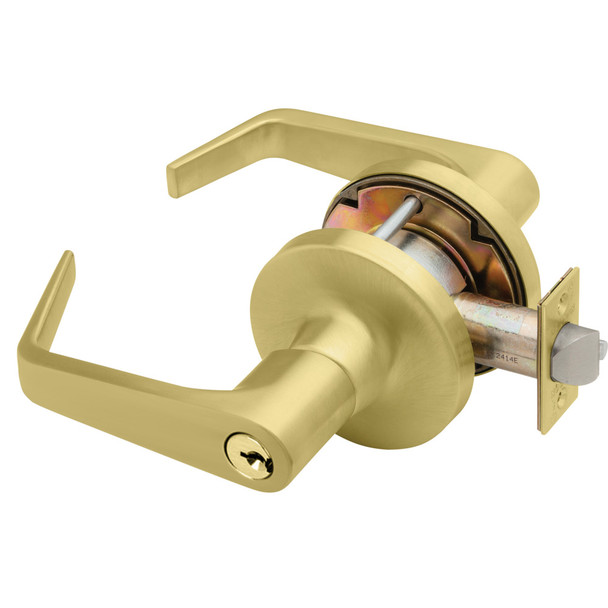

The Falcon T581PD is an extra heavy-duty Grade 1 cylindrical lock built for high-traffic and abuse-resistant applications in institutional settings. Its removable cylinder design enables quick re-keying without removing the lock, making retrofits and building updates simple and cost-effective for facility managers and security professionals.
This lock fits standard 1-3/4" to 2-1/8" doors with 2-3/4" backset; thin-door adapters and alternative backsets are available. Brass and stainless steel construction resists corrosion, and interchangeable core options support most major manufacturers. Contact an authorized E.D. Locks dealer at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying, handing, and installation.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard; thin-door adapter available
- Backset: 2-3/4" standard; 2-3/8" available; 5" with link (A22161-005-10)
- Cylinder: 6-pin chambers, pinned in 5; 6-pin or 7-pin available; removable for re-keying
- Keyway: G standard (conventional); A standard (interchangeable core)
- Bolt Projection: 9/16" standard; 3/4" available
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- Handing: Non-handed
- Material: Brass and cold-formed steel, zinc-plated and dichromated; stainless steel springs
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Mounting: Through-bolted with (2) 10-32 screws
- Keys: Two nickel silver keys standard
- Interchangeable Core: Available in small format (SFIC) and large format
