Description

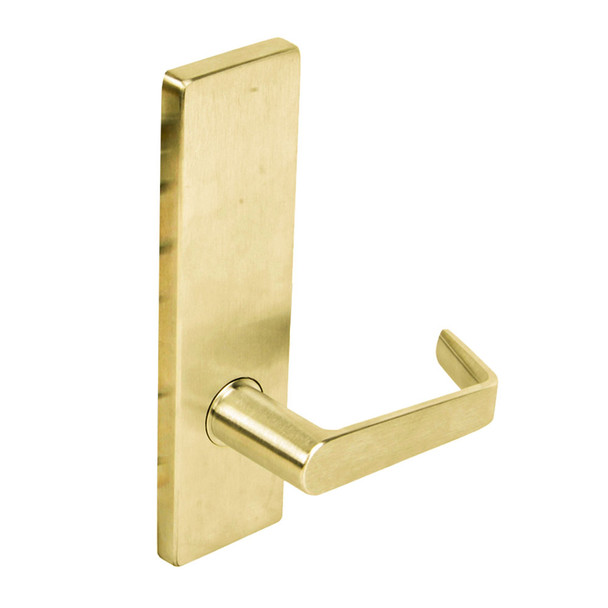

The Falcon TP55E D 606 is a commercial mortise lock built for high-traffic office, hospital, and education environments. This MA Series lock combines security with durability, featuring a mechanical anti-friction latch bolt and 1-inch throw deadbolt with saw-resistant rollers. It handles constant use without fail and simplifies maintenance with an interchangeable core design for quick re-keying.
The lock accommodates door thicknesses from 1-3/8" to 2-1/2" and comes standard with a 2-3/4" backset and right-hand handing (left-hand available and reversible). It meets ANSI/BHMA 156.13 Series 1000 and carries a 3-hour UL A label. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying options, finishes, and electrification. Contact sales@edlocks.com or call 1-877-207-6067 for specifications and support.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6 or 7-pin standard; 6 or 7-pin interchangeable core
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable
- Electrified Functions: 12 or 24 VDC available
- ANSI/BHMA: 156.13, Series 1000
- UL: 3 hour A label
