Description

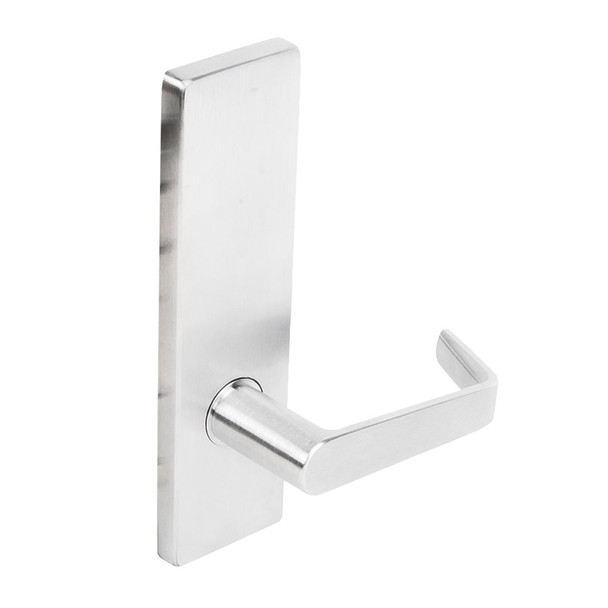

The Falcon TP55E D 625 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. This durable MA Series lock combines dependable security with an interchangeable core (SFIC-compatible) for quick re-keying without removing the lock body, solving costly downtime and maintenance challenges for facility managers.
Fits standard 1-3/8" to 2-1/2" door thickness with 2-3/4" backset; available in right or left hand (reversible in field). The lock meets ANSI/BHMA 156.13 Series 1000 and holds a 3-hour UL A label. As an authorized Falcon dealer, E.D. Locks offers expert guidance on keying, handing, and electrified options at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Falcon (Allegion)
- Model: TP55E D 625
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold-formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection, mechanical anti-friction
- Dead Bolt: 1" throw, stainless steel with two 13/16" hardened steel saw-resistant rollers
- Faceplates: 1-1/4" x 8", brass or stainless steel, adjustable for door bevel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin I/C
- Keyways: "G" standard (standard cylinder); "A" standard (I/C cylinder)
- Handing: Right hand standard; left hand optional, reversible in field
- Electrified Options: 12 or 24 VDC available
- Compliance: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label, ANSI A115.1 strike
