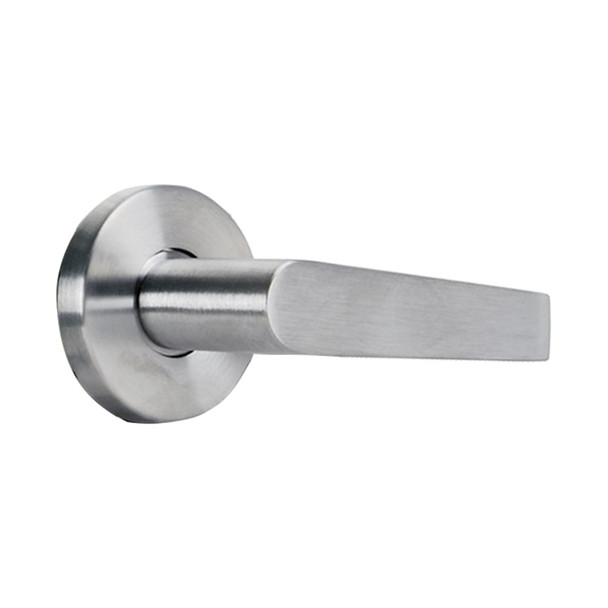

Description
The Falcon TP60C D 626 is a mortise lock built for commercial environments including offices, hospitals, and educational facilities. Its MA Series design combines dependable security with interchangeable core technology for quick re-keying without removing the lock from the door. Ideal for high-traffic applications requiring both performance and flexibility.
This lock accommodates door thicknesses from 1-3/8" to 2-1/2" and features a 2-3/4" backset. It is compatible with SFIC products and available in both standard and interchangeable core cylinders with multiple pin configurations. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying, handing options, and electrified function availability. Contact sales@edlocks.com or call 1-877-207-6067 for personalized assistance.
Specifications
- Brand: Falcon
- Model: TP60C D 626
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Electrified Functions: 12 or 24 VDC available
- ANSI/BHMA: Series 1000
- UL: 3 hour A label
- Includes: Two nickel silver keys
