Description

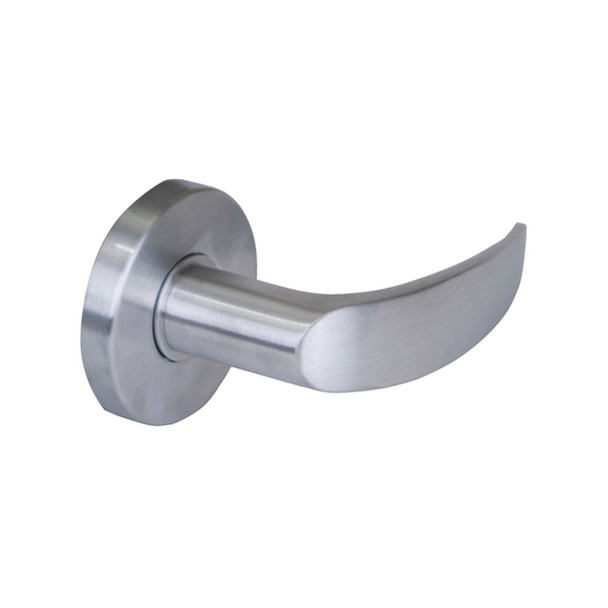

The Falcon TP60C A 626 is a commercial mortise lock built for high-traffic office, hospital, and education environments. Its interchangeable core design enables fast re-keying without removing the lock body, while the anti-friction latch and saw-resistant roller deadbolt deliver reliability under constant use. SFIC-compatible and backed by Allegion quality.
This lock accommodates door thickness from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA Series 1000 and UL 3-hour standards. Reversible handing and available electrified options suit diverse installations. Contact an E.D. Locks authorized dealer at sales@edlocks.com or 1-877-207-6067 for keying assistance and expert guidance on your project.
Specifications
- Door thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand and field-reversible options available
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyways: G keyway (standard cylinder) or A keyway (I/C cylinder)
- Latch bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8", brass or stainless steel
- Electrified functions: 12 or 24 VDC available
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
