Description

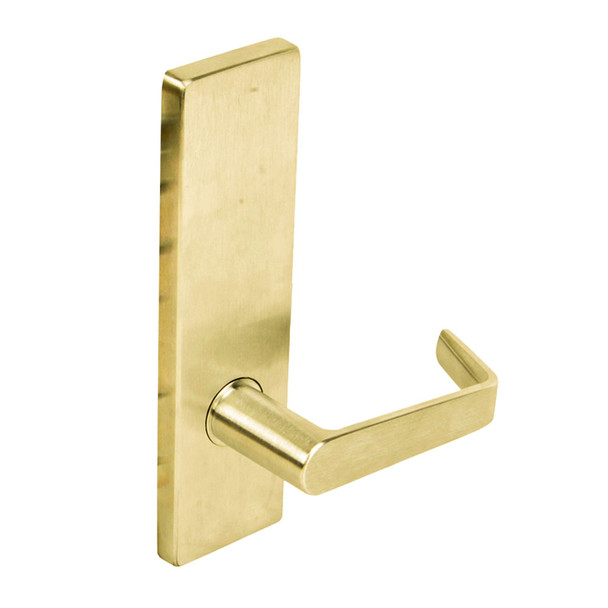

The Falcon TP75E D 606 is a heavy-duty mortise lock built for commercial environments including offices, hospitals, and educational facilities. This MA Series lock combines security with dependability, featuring an interchangeable core for quick re-keying and SFIC compatibility. It handles constant daily use without compromise, making it ideal for retrofit projects and new installations.
Accommodates standard door thickness 1-3/8" to 2-1/2" with 2-3/4" backset. The lock ships with two nickel silver keys and can be keyed to your specifications. As an authorized Falcon dealer, E.D. Locks provides expert guidance on installation, keying, and electrified options. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized assistance.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyways: "G" standard (standard cylinder), "A" standard (I.C. cylinder)
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- Finishes: Brass or stainless steel
- Electrified: 12 or 24 VDC available
- Rating: ANSI/BHMA 156.13 Series 1000, UL 3 hour A label
- Handing: Right hand standard, left hand optional, field reversible
