Description

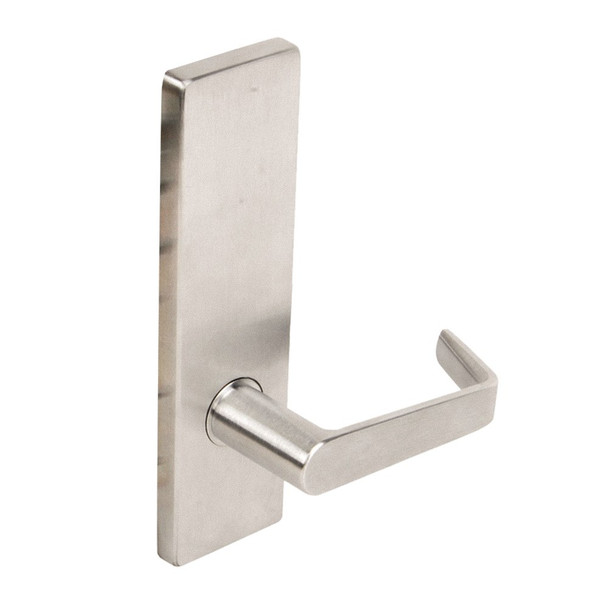

The Falcon TP75E D 630 is a commercial mortise lock built for high-traffic environments in offices, hospitals, and educational facilities. This MA Series lock combines security with durability, featuring a two-piece stainless steel latch bolt with mechanical anti-friction design and a 1-inch throw dead bolt with saw-resistant rollers. Perfect for projects demanding reliable performance under constant use.
The TP75E D 630 accommodates door thickness from 1-3/8 to 2-1/2 inches with a 2-3/4-inch backset and supports SFIC interchangeable cores for quick re-keying. It meets ANSI/BHMA 156.13 Series 1000 and carries a 3-hour UL A label. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert specification guidance and keying options.
Specifications
- Brand: Falcon (Allegion)
- Model: TP75E D 630
- Door Thickness: 1-3/8 to 2-1/2 inches
- Backset: 2-3/4 inch only
- Case: Cold formed steel, zinc dichromate plated, 0.090 inch thick
- Latch Bolt: Two-piece stainless steel, 3/4 inch projection
- Dead Bolt: 1 inch throw, stainless steel with hardened steel rollers
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyway: G keyway standard; A keyway on I/C cylinder
- Faceplates: 1-1/4 by 8 inches, brass or stainless steel, adjustable for door bevel
- Handing: Right hand standard; left hand optional, field reversible
- Electrified: 12 or 24 VDC available
- ANSI/BHMA: 156.13, Series 1000
- UL Rating: 3 hour A label
- Keys: Two nickel silver keys furnished standard
