Description

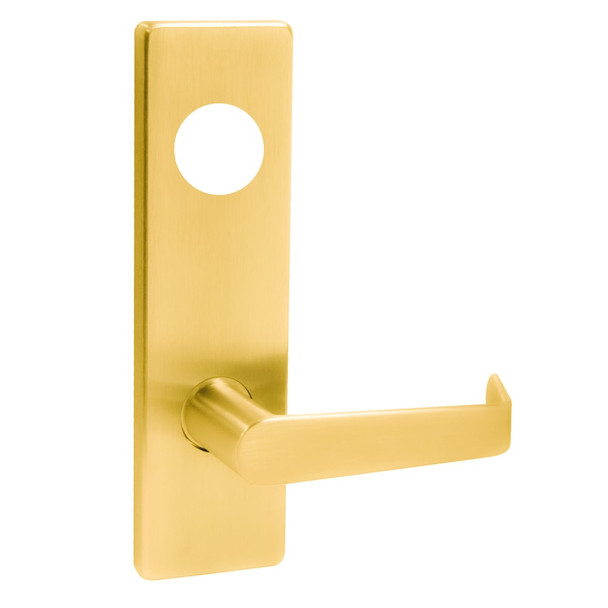

The Falcon TP85E D 605 is a heavy-duty mortise lock built for commercial environments including offices, hospitals, and educational facilities. This MA Series lock combines dependable security with the interchangeable core (SFIC) system, enabling quick field re-keying without removing the lock body. Ideal for high-traffic doors requiring both durability and operational flexibility.
Compatible with standard door thicknesses of 1-3/8" to 2-1/2", this lock features a 2-3/4" backset and reversible handing for easy installation. The stainless steel latch and dead bolt with saw-resistant rollers provide lasting performance. As an authorized Falcon dealer, E.D. Locks offers expert guidance on keying, finish selection, and project specifications. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for assistance with your security needs.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin for interchangeable core
- Keyways: "G" standard (standard cylinder); "A" standard (I.C. cylinder)
- Keys Furnished: Two nickel silver keys standard
- Electrified Functions: Available 12 or 24 VDC
- ANSI/BHMA: 156.13, Series 1000
- UL: 3 hour A label
