Description

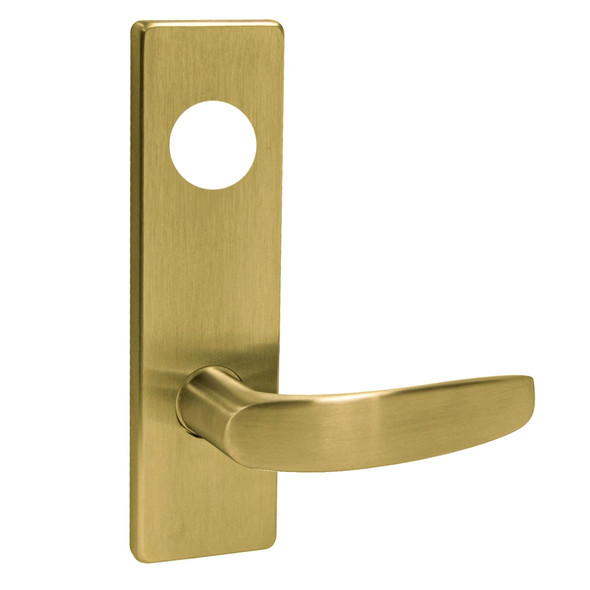

The Falcon TP85E S 606 is a heavy-duty mortise lock built for commercial environments including offices, hospitals, and educational facilities. This MA Series lock combines dependable security with affordability, featuring an interchangeable SFIC core for quick re-keying and compatibility with other manufacturers' products. Its two-piece stainless steel latch and anti-friction bolt withstand constant daily use.
Compatible with door thickness 1-3/8" to 2-1/2" and standard 2-3/4" backset, this lock is reversible in the field for flexible installation. As an authorized Falcon dealer, E.D. Locks provides expert support and guidance on keying options, electrification, and compatibility. Contact sales@edlocks.com or call 1-877-207-6067 for personalized assistance with your commercial security project.
Specifications
- Brand: Falcon (Allegion)
- Model: TP85E S 606
- Type: Mortise Lock, MA Series
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard, left hand optional, reversible
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin for interchangeable core
- Keys Furnished: Two nickel silver keys
- Keyways: G (standard cylinder), A (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with two 13/16" hardened steel saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, ANSI A115.1 compliant, non-handed
- Electrified Functions: Available in 12 or 24 VDC
- ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000
- UL Rating: 3 hour A label
