Description

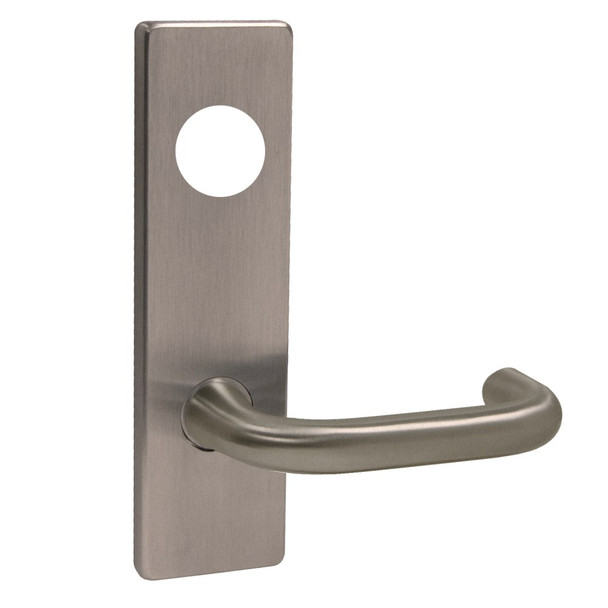

The Falcon TP85E S 630 is a high-performance mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. Built on Falcon's proven MA Series platform, this lock delivers dependable security and durability under constant use. The interchangeable core design enables quick re-keying without removing the lock body, reducing downtime and maintenance costs.
The TP85E S 630 accommodates standard door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 certification. SFIC-compatible and available in both electrified and mechanical versions. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying, handing, and installation. Contact sales@edlocks.com or 1-877-207-6067 for application support.
Specifications
- Brand: Falcon (Allegion)
- Model: TP85E S 630
- Type: Mortise Lock, MA Series
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold-formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyways: "G" (standard) or "A" (interchangeable core)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8", brass or stainless steel, adjustable
- Electrified: 12 or 24 VDC available
- Certification: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Handing: Right-hand standard, left-hand optional, reversible in field
