Description

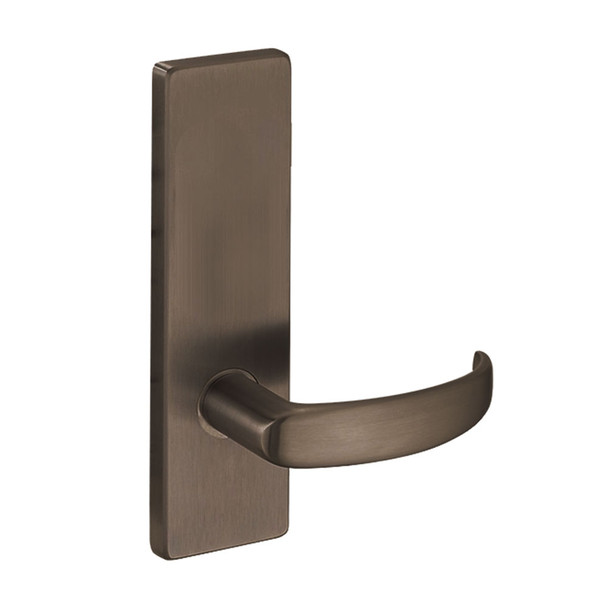

The Falcon TP95E Q 613 is a heavy-duty mortise lock built for high-traffic commercial environments including offices, hospitals, and educational facilities. This ANSI/BHMA Series 1000 lock combines security with reliability, featuring a mechanical anti-friction latch bolt and a 1-inch throw dead bolt with saw-resistant rollers. Perfect for projects requiring dependable performance under constant use.
This lock accommodates door thickness from 1-3/8" to 2-1/2" with a 2-3/4" backset and offers interchangeable core (SFIC) compatibility for tool-free re-keying. It comes with solid brass cylinders, two nickel silver keys, and is available in 12 or 24 VDC electrified options. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert installation guidance and keying assistance.
Specifications
- Brand: Falcon (by Allegion)
- Model: TP95E Q 613
- Lock Type: Mortise
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with hardened steel rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Cylinders: Solid brass, 5/6/7-pin standard; 6/7-pin interchangeable core
- Keyways: G (standard); A (I/C); optional keyways available
- Hubs: Hardened steel
- Handing: Right hand standard; left hand and field-reversible optional
- Electrified: Available 12 or 24 VDC
- ANSI/BHMA: Meets 156.13, Series 1000
- UL Rating: 3 hour A label
- Finish Options: Per Falcon finishes chart
