Description

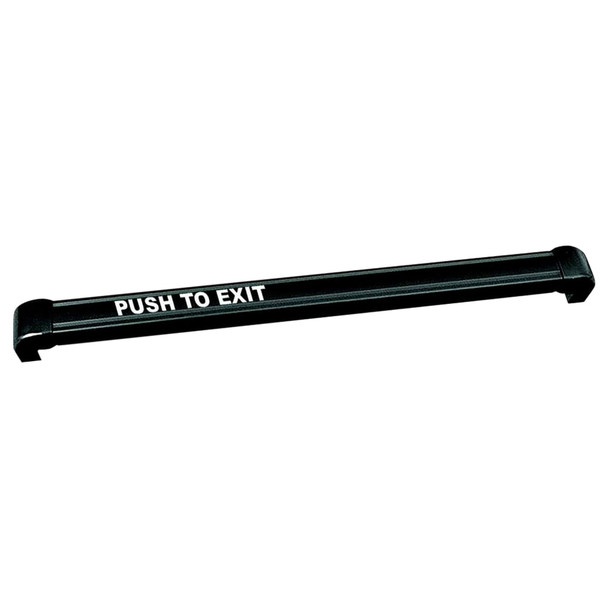

The Securitron TSB-BK-42 is a touch-triggered exit device for magnetically locked doors. A light touch on the bar releases the lock instantly, even through gloves or clothing. Ideal for emergency egress, healthcare facilities, and secure entry areas requiring hands-free or minimal-contact release without special knowledge or tools.
Installs on metal, aluminum, or wood frame doors up to 2-1/4" thick using the included through-bolt kit. Field-cuttable to 48" for non-standard openings. Dual-voltage 12/24 VDC operation with 16 ft. cable included. Contact our authorized dealer experts at sales@edlocks.com or 1-877-207-6067 for compatibility verification, installation guidance, and code compliance support.
Specifications
- Brand: Securitron
- Model: TSB-BK-42
- Function: Touch-triggered electronic release
- Voltage: Automatic dual-voltage 12 VDC / 24 VDC
- Relay: DPST 2A rated
- Current Draw: 40 mA at rest; 25 mA releasing
- Cable: 16 ft. 22AWG 6 conductor armored door cord
- Door Thickness: Up to 2-1/4" with through-bolt kit
- Field Cuttable: Yes, up to 48"
- Installation: Indoor use only
- Features: Backup push button, trailing edge timer, ElectroLynx ready option
