Description
The Yale 8800 Series mortise lock is a Grade 1 commercial security solution designed for demanding applications requiring uncompromising strength and durability. Built with a reinforced stainless steel deadbolt and heavy-duty vandal-resistant trim, it solves security challenges in offices, hospitals, schools, and institutional facilities where reliability is non-negotiable.

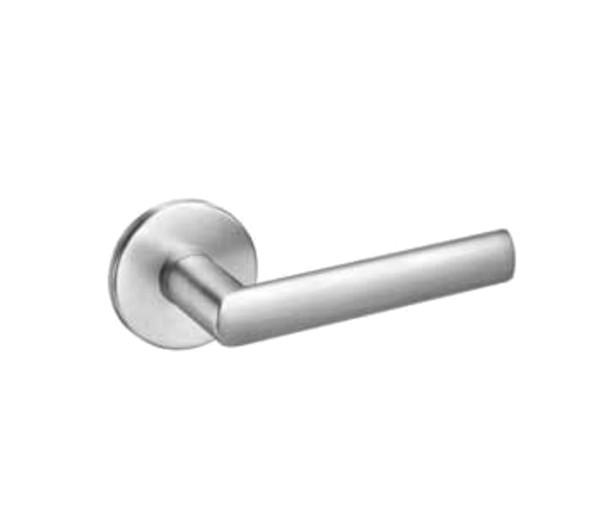

This mortise lock installs easily with quick lever handing, field-reversible latchbolt, and standard nonhanded strike, fitting door thicknesses from 1-3/4" to 3-1/4". The VIR8802FL trim pack arrives keyed-random with two keys included. As an authorized Yale dealer, E.D. Locks provides expert configuration assistance and competitive pricing. Contact sales@edlocks.com or call 1-877-207-6067 for keying options, finish selection, or installation guidance.
Specifications
- ANSI/BHMA Grade 1, Certified A156.13 Series 1000
- UL/cUL Fire Rated: up to 3 hours
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard (up to 3-1/4" available)
- Cylinders: Brass 6-pin keyed-random (7-pin available)
- Field Reversible Handing
- Finish: 626 (Satin Chrome) among 17 available options
- Warranty: 10-year mechanical
