Description

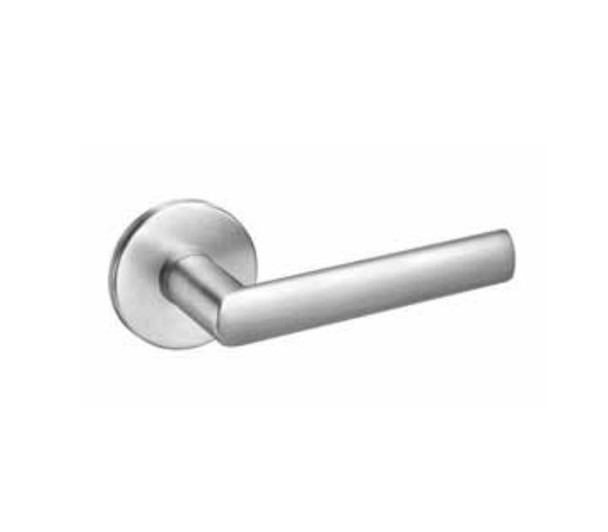

The Yale 8824FL mortise lock delivers ANSI/BHMA Grade 1 security for commercial doors. Built with a reinforced stainless steel deadbolt and heavy-duty vandal-resistant trim, this lock handles high-traffic applications and demanding environments. Field-reversible latchbolt and quick lever handing simplify installation for facility managers and locksmiths.
Fits standard 1-3/4" doors and thicker doors to order. The 6-pin keyed-random cylinder comes with two keys standard. As an authorized Yale dealer, E.D. Locks provides expert specification guidance and fast shipping. Contact sales@edlocks.com or call 1-877-207-6067 for compatibility questions or custom configurations.
Specifications
- ANSI/BHMA Certification: A156.13, Series 1000, Grade 1
- Fire Rating: UL/cUL rated up to 3 hours
- Mechanism: Stainless steel
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard, up to 3-1/4" to order
- Cylinder: 6-pin brass, keyed-random with 2 keys standard; 7-pin available
- Strike: 1-1/4" curved lip for 1-3/4" door standard
- Reversibility: Field reversible handing
- Warranty: 10 years mechanical
