Description

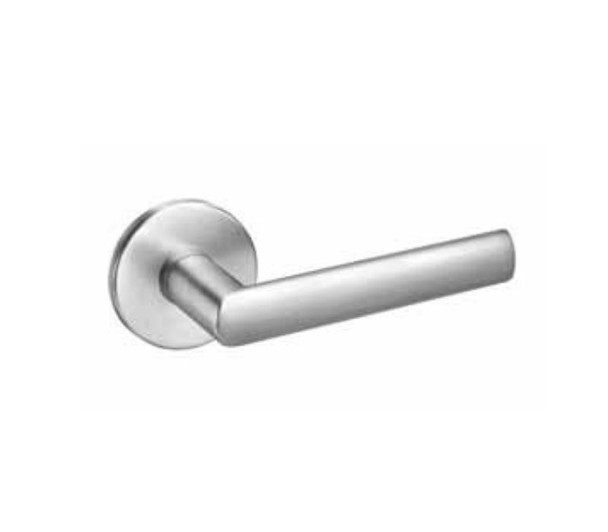

The Yale 8800 Series VIR8829FL mortise lock trim pack delivers ANSI/BHMA Grade 1 security for commercial doors. Built with reinforced stainless steel components and vandal-resistant trim, this lock suits high-traffic entryways, offices, and institutions requiring durability and ease of installation. Field-reversible handing and quick lever assembly minimize setup time.
Compatible with 1-3/4" standard door thickness (up to 3-1/4" available to order), this trim pack includes a 6-pin keyed-random cylinder, two keys, reversible strike, and choice of 17 finishes. As an authorized Yale dealer, E.D. Locks offers expert guidance on finish selection and installation. Contact sales@edlocks.com or call 1-877-207-6067 for compatibility questions or to discuss your project needs.
Specifications
- ANSI/BHMA Certification: A156.13, Series 1000, Operational Grade 1
- Fire Rating: UL/cUL rated up to 3 hours
- Mechanism: Stainless steel
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard (up to 3-1/4" to order)
- Cylinder: Brass, 6-pin keyed-random, two keys included (7-pin available)
- Reversibility: Field reversible handing
- Strike: 1-1/4" curved lip for 1-3/4" door, reversible
- Finishes: 17 available finishes
- Warranty: 10 year mechanical
