Description

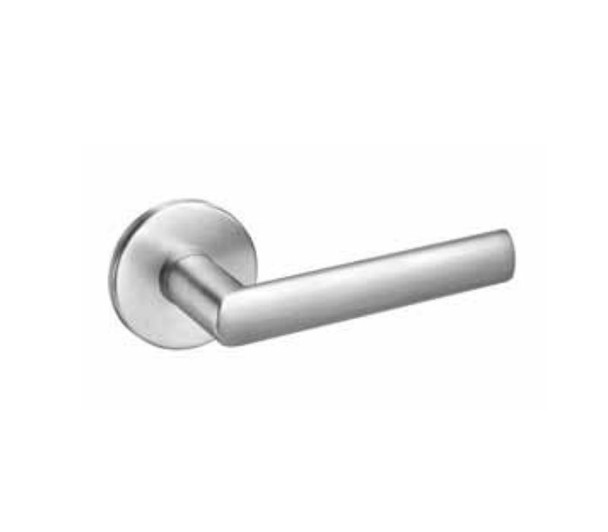

The Yale 8830-2FL 626 is a heavy-duty mortise lock built for commercial doors requiring ANSI/BHMA Grade 1 security and durability. Featuring a reinforced stainless steel deadbolt, vandal-resistant trim, and field-reversible handing, this lock solves the need for reliable access control in high-traffic commercial environments while simplifying installation.
The lock fits standard 1-3/4" doors and accommodates thicker doors up to 3-1/4" by special order. It ships with a 6-pin keyed-random cylinder and two keys; 7-pin cylinders are available on request. As an authorized Yale dealer, E.D. Locks provides expert guidance on handing, keying, and finish selection. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- ANSI/BHMA Certification: A156.13, Series 1000, Grade 1
- Fire Rating: UL/cUL rated up to 3 hours
- Windstorm: Certified
- Mechanism: Stainless steel
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard; up to 3-1/4" to order
- Fronts: Bevel front, free-floating (adjusts flat to 1/8" bevel)
- Cylinders: Brass, 6-pin keyed-random with 2 keys standard; 7-pin available
- Field Reversible: Yes
- Strikes: 1-1/4" curved lip for 1-3/4" door standard; reversible
- Finishes: 17 available options
- Warranty: 10 years mechanical
