Description

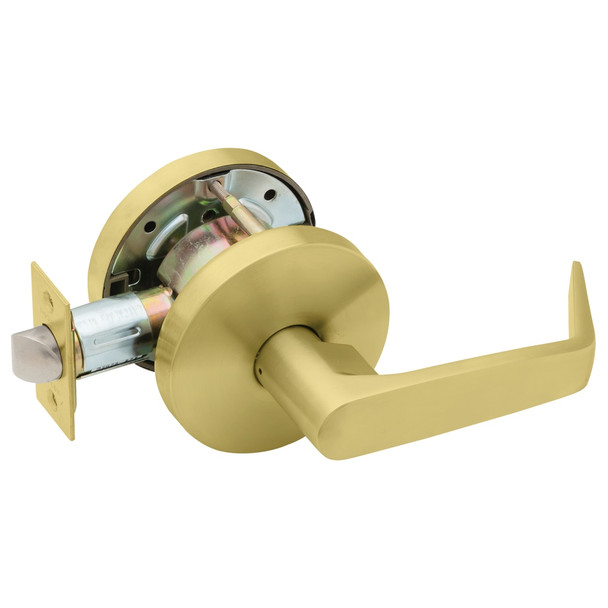

The Falcon W161D D 606 is a commercial cylindrical lock designed for lower-traffic doorways in government, retail, industrial, and multi-family facilities. This affordable lock combines durable brass and stainless steel construction with conventional or interchangeable core cylinders, solving the need for reliable security on a budget across diverse building types.
Compatible with standard 6-pin cylinders from Falcon, Schlage, Corbin-Russwin, Yale, and Sargent, this lock fits door thicknesses of 1-3/8" to 1-3/4" with 2-3/4" standard backset. As an authorized E.D. Locks dealer, we offer expert guidance on keying, master keying options, and cylinder selection. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for personalized assistance.
Specifications
- Door Thickness: 1-3/8" to 1-3/4" standard
- Backset: 2-3/4" standard; 2-3/8" also available
- Mechanism: Brass or cold-formed steel with zinc plating and stainless steel springs
- Cylinder: 6-pin removable pinning; removable cylinders for re-keying
- Cylinder Options: Standard or 6- or 7-pin interchangeable cores
- Keyways: "G" keyway standard (Falcon); "A" keyway standard (I/C core); Schlage "C" available
- Bolt Projection: 1/2" stainless steel, UL listed for 3-hour fire-rated doors
- Latch Faces: 1" x 2-1/4" (2-3/8" backset) or 1-1/8" x 2-1/4" (2-3/4" backset)
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip
- Handing: Non-handed
- Trim: Heavy wrought brass or bronze roses; pressure-cast zinc levers
