Description

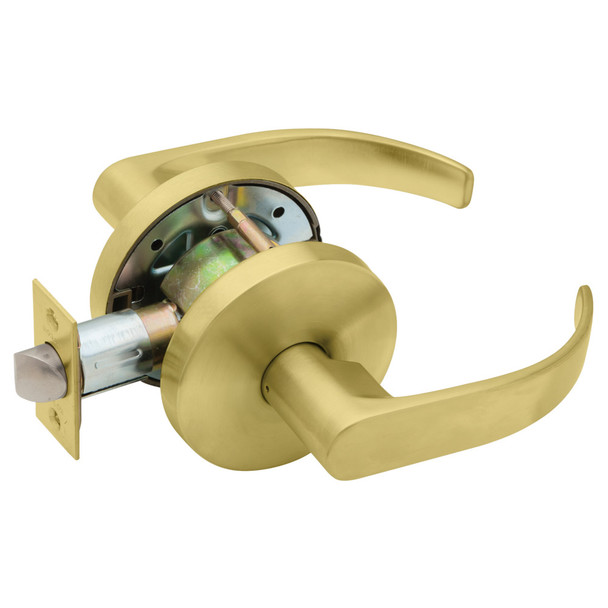

The Falcon W161D Q 606 is an affordable cylindrical lock designed for government, retail, industrial and multi-family buildings with moderate traffic. It solves the need for reliable, budget-friendly security on standard commercial doorways while offering flexibility in lever styles and rose sizes to match existing door trim.
This lock fits doors 1-3/8" to 1-3/4" thick with standard 2-3/4" backset and accepts 6-pin cylinders from Falcon, Schlage, Corbin-Russwin, Yale and Sargent for easy rekeying and master keying. As an authorized Falcon dealer, E.D. Locks provides expert guidance on cylinder options, keyway selection and installation. Contact sales@edlocks.com or call 1-877-207-6067 for personalized support.
Specifications
- Door Thickness: 1-3/8" to 1-3/4" standard
- Backset: 2-3/4" standard; 2-3/8" also available
- Bolt Projection: 1/2" stainless steel
- Latch Faces: 1" x 2-1/4" (2-3/8" backset) or 1-1/8" x 2-1/4" (2-3/4" backset)
- Cylinder: 6-pin conventional or interchangeable core (I/C)
- Keyways: G keyway standard on conventional cylinders; A keyway standard on I/C cores; Schlage C keyway available
- Cylinder Compatibility: Falcon, Schlage, Corbin-Russwin, Yale, Sargent 6-pin cylinders
- Material: Brass or cold-formed steel mechanism, zinc plated; stainless steel springs and latch; wrought brass or bronze roses; zinc lever trim
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip
- UL Listed: 3-hour door assemblies
- Handing: Non-handed
- Keys: Two nickel silver keys included
