Description

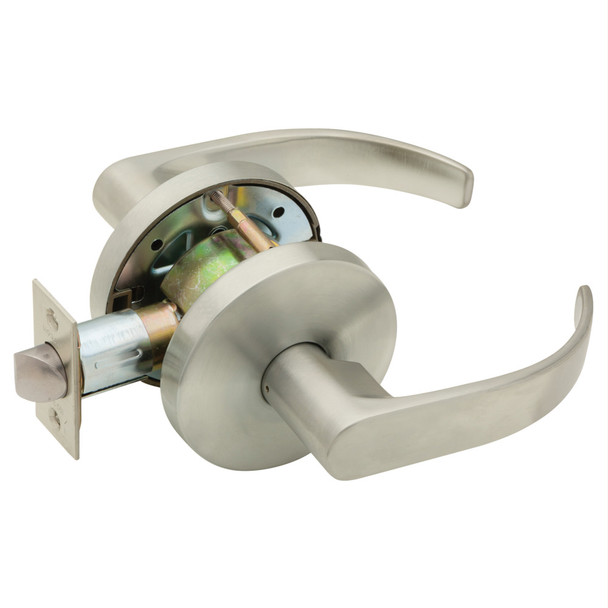

The Falcon W161D Q 619 is an affordable cylindrical lock engineered for lower-traffic commercial doorways in government, retail, industrial and multi-family settings. It combines solid construction with budget-friendly pricing, offering conventional cylinders and small format interchangeable cores compatible with SFIC products from other manufacturers across multiple keyway options including Schlage C.
This non-handed lock accommodates standard door thickness of 1-3/8" to 1-3/4" with 2-3/4" backset (2-3/8" also available). Brass and stainless steel components ensure durability and rust resistance. The W161D accepts cylinders from Falcon, Schlage, Corbin-Russwin, Yale and Sargent for flexibility. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying, masterkeying and installation support as an authorized Falcon dealer.
Specifications
- Brand: Falcon
- Model: W161D Q 619
- Door Thickness: 1-3/8" to 1-3/4" standard
- Backset: 2-3/4" standard; 2-3/8" available
- Bolt Projection: 1/2" stainless steel
- Latch Faces: 1" x 2-1/4" (2-3/8" backset) or 1-1/8" x 2-1/4" (2-3/4" backset)
- Strike: 4-7/8" x 1-1/4" ANSI
- Cylinder: 6-pin conventional or interchangeable core
- Keyways: G (standard), A (I/C core), Schlage C available
- Handing: Non-handed
- Materials: Brass, cold-formed steel (zinc plated, dichromated), stainless steel springs
- Keys Furnished: Two nickel silver standard
- UL Listed: 3-hour door assemblies
