Description

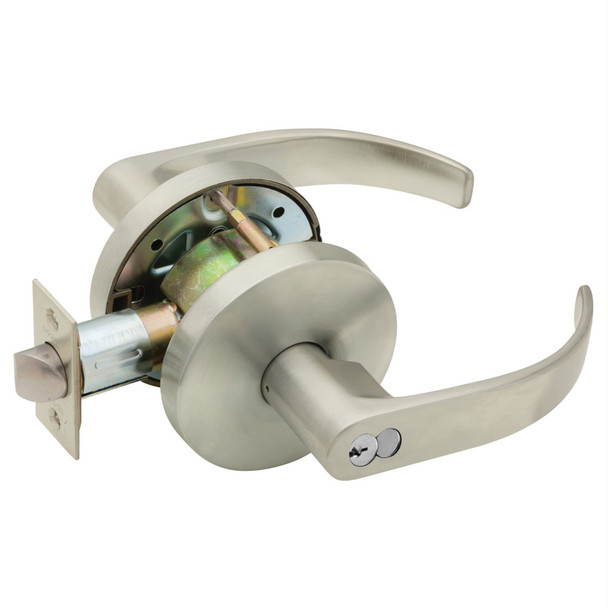

The Falcon W511HD Q 619 is a commercial cylindrical lock designed for lower-traffic doorways in government, retail, industrial, and multi-family buildings. It offers solid construction at an affordable price, featuring conventional cylinders and small format interchangeable cores compatible with SFIC products from other manufacturers, plus Schlage C keyway masterkeying across the Falcon line.
This non-handed lock fits standard door thicknesses from 1-3/8" to 1-3/4" with 2-3/4" backset (2-3/8" also available). The stainless steel latch is UL listed for 3-hour fire-rated assemblies. Contact E.D. Locks' expert team at sales@edlocks.com or 1-877-207-6067 for keying guidance, masterkey options, and authorized dealer support.
Specifications
- Door Thickness: 1-3/8" to 1-3/4" standard
- Backset: 2-3/4" standard; 2-3/8" also available
- Mechanism: Brass or cold-formed steel, zinc plated and dichromated; stainless steel springs
- Cylinder: 6-pin, removable for rekeying; also available with 6- or 7-pin interchangeable cores
- Cylinder Housing: Solid brass with stainless steel springs
- Keys: Two nickel silver keys furnished standard
- Keyways: G keyway standard on conventional cylinders; A keyway on I/C core; Schlage C available
- Compatible Cylinders: Falcon, Schlage, Corbin-Russwin, Yale, Sargent
- Trim: Heavy wrought brass or bronze roses over steel inserts; pressure-cast zinc levers
- Latch: 1/2" bolt projection, stainless steel, self-adjusting front; UL listed for 3-hour assemblies
- Latch Face: 1" x 2-1/4" (2-3/8" backset) or 1-1/8" x 2-1/4" (2-3/4" backset)
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip, ANSI A115.2 compliant
- Handing: Non-handed
