Description

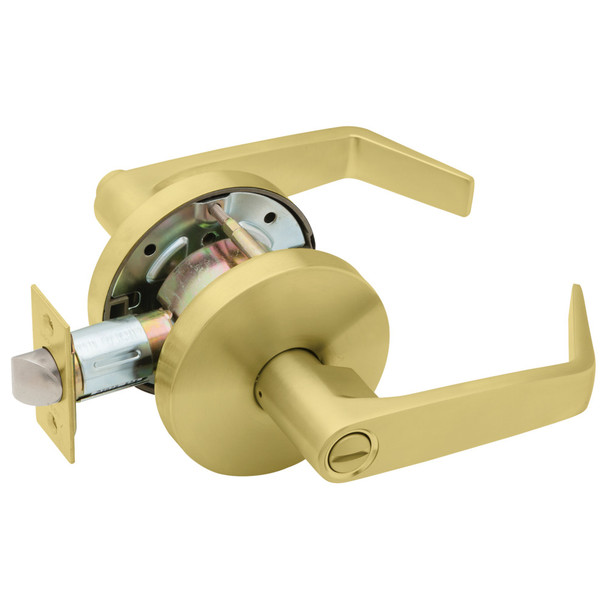

The Falcon W201D D 606 is a cylindrical lock engineered for cost-effective security in government, retail, industrial and multi-family buildings. Designed for lower-traffic doorways, this lock combines affordability with reliable performance, featuring conventional cylinders and small-format interchangeable cores compatible with SFIC products from other manufacturers.
Installation fits standard door thicknesses of 1-3/8" to 1-3/4" with 2-3/4" backset (2-3/8" available). The lock accepts cylinders from Falcon, Schlage, Corbin-Russwin, Yale and Sargent, offering flexibility in keying and master keying. Contact E.D. Locks, an authorized Falcon dealer, at sales@edlocks.com or 1-877-207-6067 for expert guidance on cylinder selection and installation support.
Specifications
- Door Thickness: 1-3/8" to 1-3/4" standard
- Backset: 2-3/4" standard; 2-3/8" available
- Mechanism: Brass or cold-formed steel, zinc plated and dichromated; stainless steel springs
- Cylinder: Six-chamber pinning, removable for rekeying
- Interchangeable Core: 6- or 7-pin SFIC options available
- Keyway: "G" standard on Falcon cylinders; "A" on I/C cores; Schlage "C" available
- Compatible Keyways: Falcon, Schlage, Corbin-Russwin, Yale, Sargent
- Latch: 1/2" stainless steel bolt projection, UL listed for 3-hour door assemblies
- Latch Face: 1" x 2-1/4" (2-3/8" backset) or 1-1/8" x 2-1/4" (2-3/4" backset)
- Strike: 4-7/8" x 1-1/4" ANSI curved lip
- Handing: Non-handed
- Keys: Two nickel silver keys furnished standard
