Description

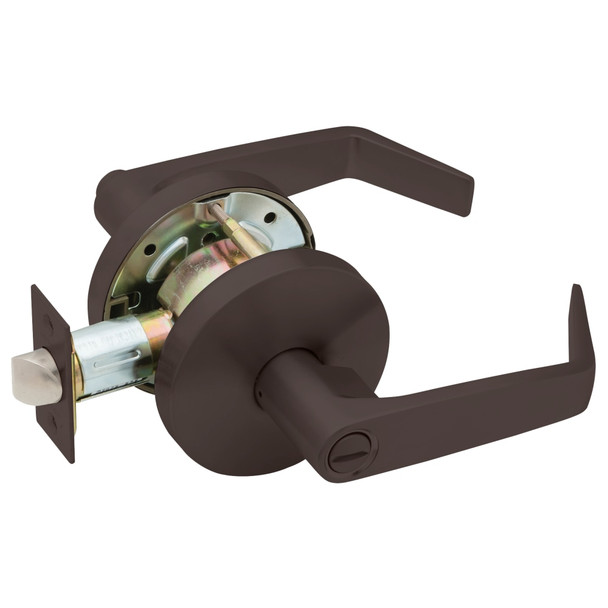

The Falcon W201D D 613 is a cylindrical lock designed for lower-traffic doorways in government, retail, industrial, and multi-family buildings. It combines affordability with solid construction, featuring brass or cold-formed steel components with stainless steel springs for rust resistance. Non-handed design and interchangeable cores make it flexible for most commercial door trim configurations.
Compatible with standard 6-pin cylinders from Falcon, Schlage, Corbin-Russwin, Yale, and Sargent, this lock installs on doors 1-3/8" to 1-3/4" thick with standard 2-3/4" backset (2-3/8" available). Master keying is available on Falcon and Schlage C keyways. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert keying assistance and authorized dealer support.
Specifications
- Brand: Falcon
- Model: W201D D 613
- Lock Type: Cylindrical
- Door Thickness: 1-3/8" to 1-3/4" standard
- Backset: 2-3/4" standard; 2-3/8" available
- Cylinder: Six-pin conventional or interchangeable core
- Keyways: G (standard), A (I/C core), Schlage C (optional)
- Bolt Projection: 1/2"
- Latch Face: 1" x 2-1/4" (2-3/8" backset) or 1-1/8" x 2-1/4" (2-3/4" backset)
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Material: Brass or cold-formed steel, zinc plated; stainless steel springs
- Handing: Non-handed
- Keys Furnished: Two nickel silver keys
- UL Listed: 3-hour door assemblies
